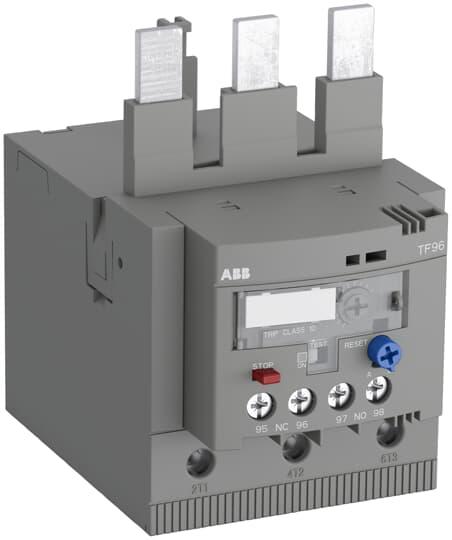

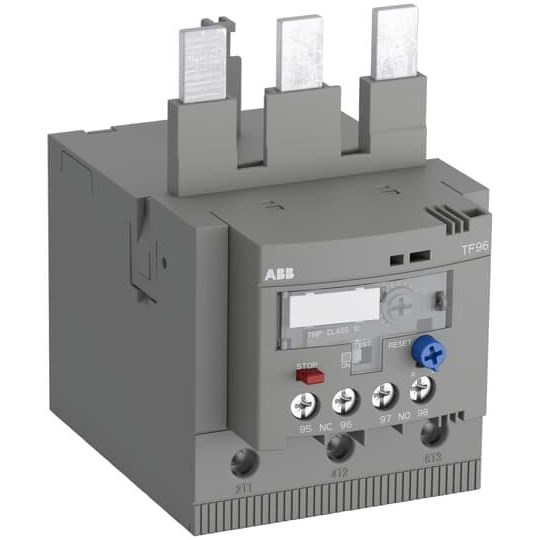

ABB TF96-96 Thermal Overload Relay 84-96A 690VAC 250A Fuse Type gG

Product Code: TF96-96

  • Suitable for AF80-AF96 contactors
  • Operates in -40 to 70°C environments
  • Supports 84-96 A current setting range
  • Features automatic reset function
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
84A to 96A
Trip Class
10

Dimensions & Physical Data

Depth
106.3mm
Height
106.9mm
Weight
0.52kg
Width
69.9mm
Suitable Product Range
AF80 AF96

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Documents

IPD Product Catalogue V17
