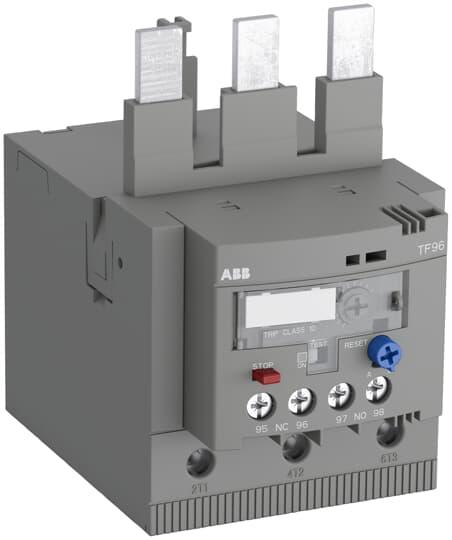

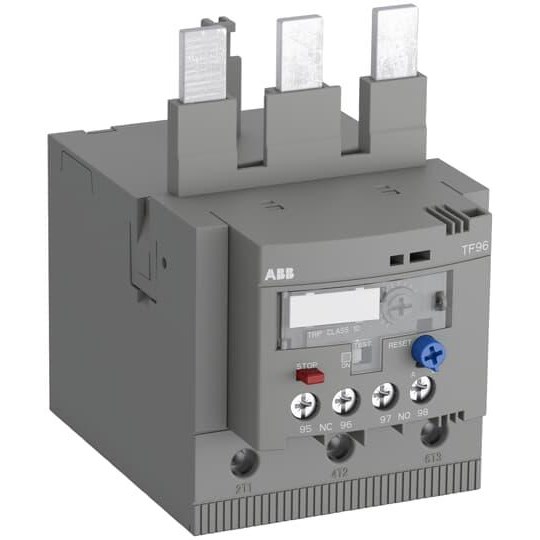

ABB TF96-78 Thermal Overload Relay 65-78A 690VAC 200A Fuse Type gG

Product Code: TF96-78

  • Suitable for AF80-AF96 contactors
  • Operates in -40 to 70°C range
  • Automatic reset function
  • IP10, IP20 protection rating
  • Meets IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690V AC
Suitable for Single Phase / Three Phase
Single Phase / Three Phase
Thermal Current Setting Range
65A to 78A
Trip Class
10

Dimensions & Physical Data

Depth
106.3mm
Height
106.9mm
Weight
0.52kg
Width
69.9mm
Suitable Product Range
AF80; AF96

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L
