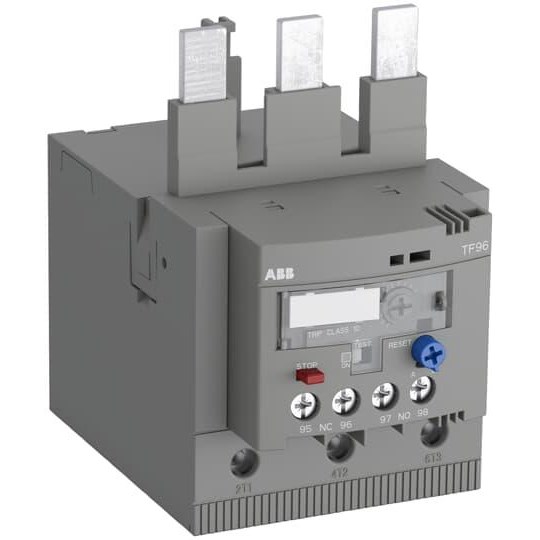

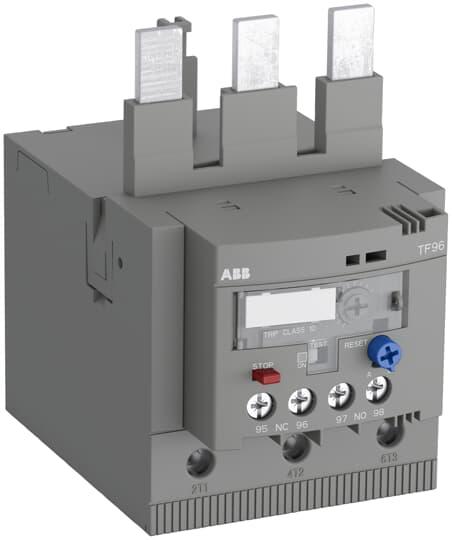

ABB TF96-68 Thermal Overload Relay 57-68A 690VAC 160A Fuse Type gG

Product Code: TF96-68

  • Rated for 690 VAC, 0.55 A, 50/60 Hz
  • Impulse withstand voltage of 8 kV
  • Contact config: 1NC+1NO
  • Direct mounting with AF80-AF96 contactors
  • Automatic reset function
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
57A to 68A
Trip Class
10

Dimensions & Physical Data

Depth
106.3mm
Height
106.9mm
Weight
0.52kg
Width
69.9mm
Suitable Product Range
AF80 AF96

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
