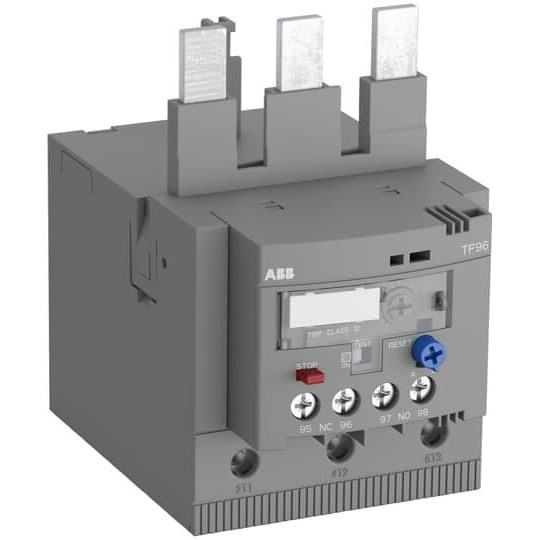

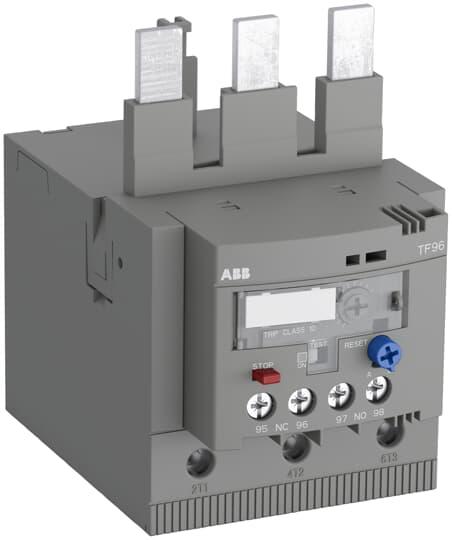

ABB TF96-60 Thermal Overload Relay 48-60A 690VAC 160A Fuse Type gG

Product Code: TF96-60

  • Rated voltage up to 690 VAC
  • Current setting range of 48-60 A
  • Operates in -40 to 70°C temp range
  • Compact size: 69.9mm W x 106.9mm H x 106.3mm D
  • Compatible with AF80-AF96 contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
48A to 60A
Trip Class
10

Dimensions & Physical Data

Depth
106.3mm
Height
106.9mm
Weight
0.52kg
Width
69.9mm
Suitable Product Range
AF80 AF96

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
