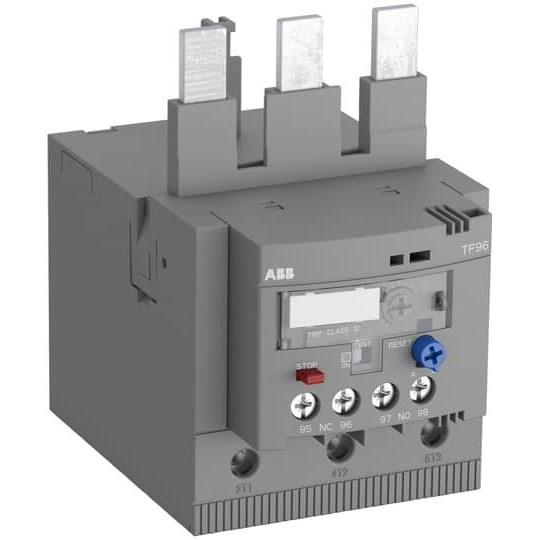

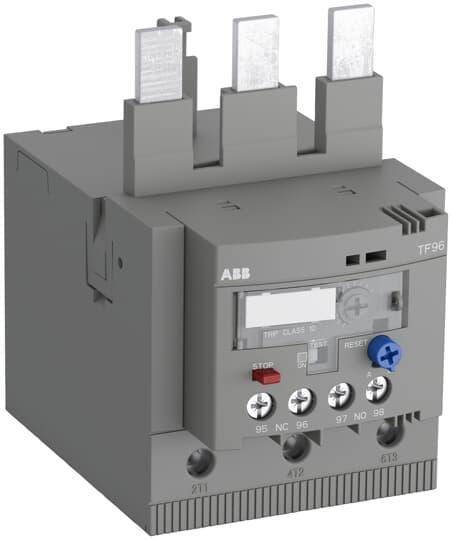

ABB TF96-51 Thermal Overload Relay 40-51A 690VAC 125A Fuse Type gG

Product Code: TF96-51

  • Rated voltage: 690 VAC
  • Current setting range: 40-51 A
  • Trip class: Class 10 for reliable protection
  • IP20 degree of protection
  • Compatible with AF80-AF96 contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
40A to 51A
Trip Class
10

Dimensions & Physical Data

Depth
106.3mm
Height
106.9mm
Weight
0.52kg
Width
69.9mm
Suitable Product Range
AF80 AF96

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
