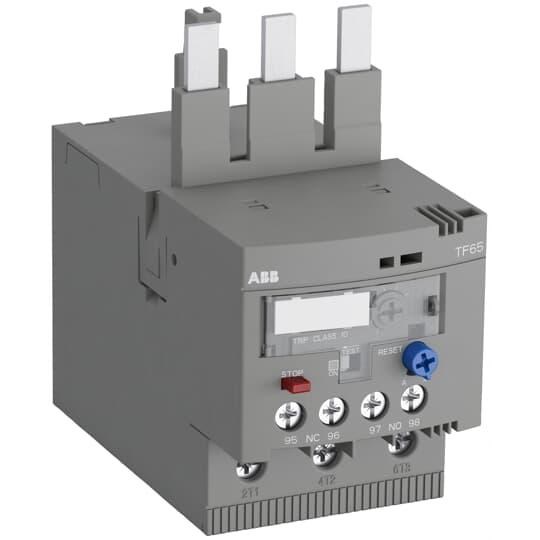

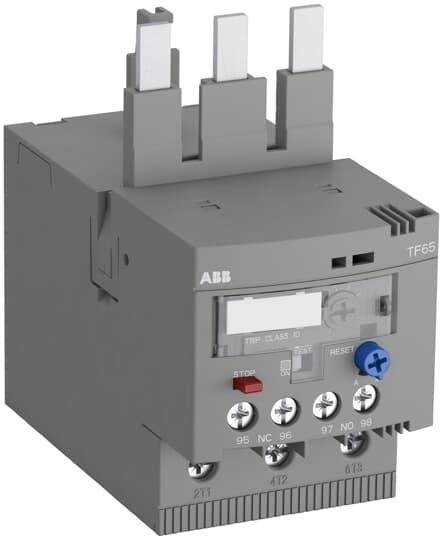

ABB TF65-53 Thermal Overload Relay 44-53A 690VAC 125A Fuse Type gG

Product Code: TF65-53

  • Rated voltage of 690 VAC for robust performance
  • Suitable with AF40-AF65 contactors
  • Operates in -40 to 70°C temperature range
  • Direct mounting for easy installation
  • Meets IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
44A to 53A
Trip Class
10

Dimensions & Physical Data

Depth
106.9mm
Height
101.4mm
Weight
0.372kg
Width
54.9mm
Suitable Product Range
AF40 AF52 AF65

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
