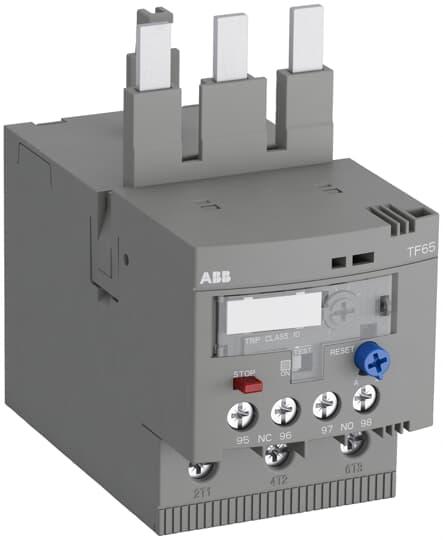

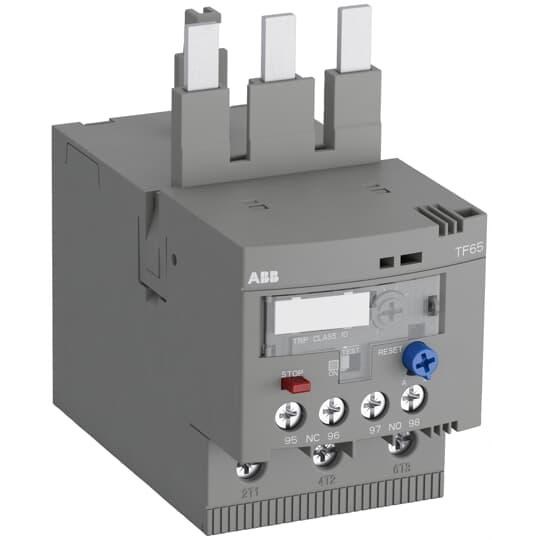

ABB TF65-40 Thermal Overload Relay 30-40A 690VAC 100A Fuse Type gG

Product Code: TF65-40

  • Rated Voltage: 690 VAC, Current: 0.55 A
  • Contact Config: 1NC+1NO, Class 10 Trip
  • Direct Mounting, Screw Connection
  • Operates from -40 to 70°C
  • Compatible with AF40-AF65 Contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
30A to 40A
Trip Class
10

Dimensions & Physical Data

Depth
106.9mm
Height
101.4mm
Weight
0.372kg
Width
54.9mm
Suitable Product Range
AF40 AF52 AF65

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
