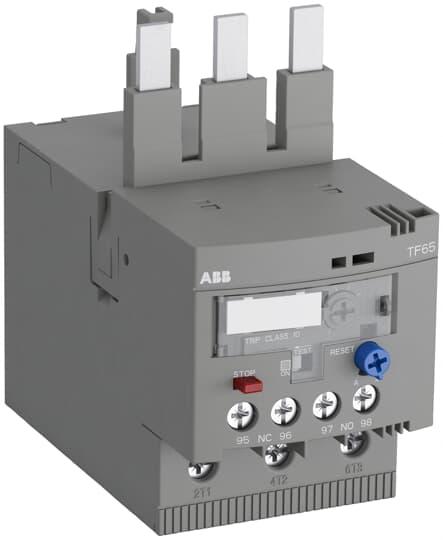

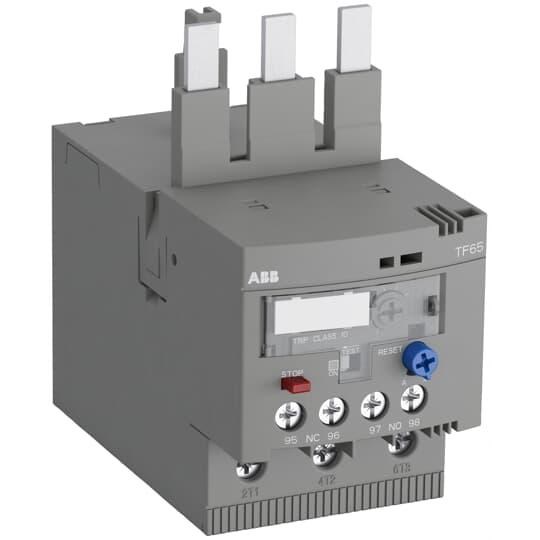

ABB TF65-33 Thermal Overload Relay 25-33A 690VAC 80A Fuse Type gG

Product Code: TF65-33

  • Rated voltage of 690 VAC
  • Setting range: 25-33 A
  • Trip class: Class 10
  • Direct mounting capability
  • Compatible with AF40-AF65 contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
25A to 33A
Trip Class
10

Dimensions & Physical Data

Depth
106.9mm
Height
101.4mm
Weight
0.372kg
Width
54.9mm
Suitable Product Range
AF40 AF52 AF65

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Documents

IPD Product Catalogue V17
