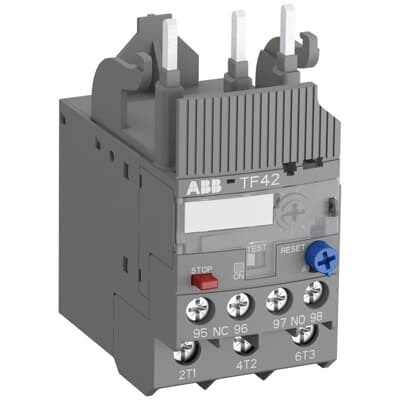

ABB TF42-7.6 Thermal Overload Relay 5.7-7.6A 690VAC 35A Fuse Type gG

Product Code: TF42-7.6

  • Rated voltage of 690 VAC for robust performance
  • Current setting range from 5.7 to 7.6 A
  • Automatic reset function for convenience
  • Suitable with AF09-AF38 contactors
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690 VAC
Suitable for Single Phase / Three Phase
Single Phase / Three Phase
Thermal Current Setting Range
5.70 ... 7.60 A
Trip Class
10

Dimensions & Physical Data

Depth
70.5 mm
Height
88.3 mm
Weight
0.130 kg
Width
45 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L

Accessories & Additional Information

Suitable Product Range
AF09; AF12; AF16; AF26; AF30; AF38

Documents

IPD Product Catalogue V17
