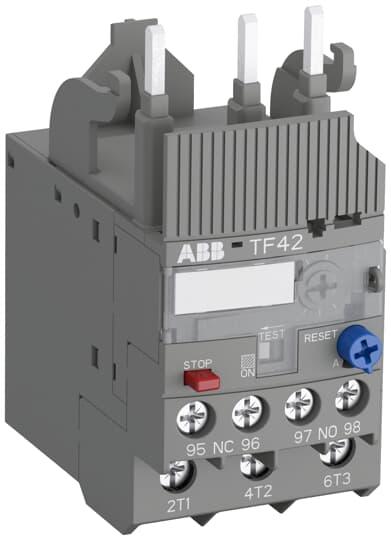

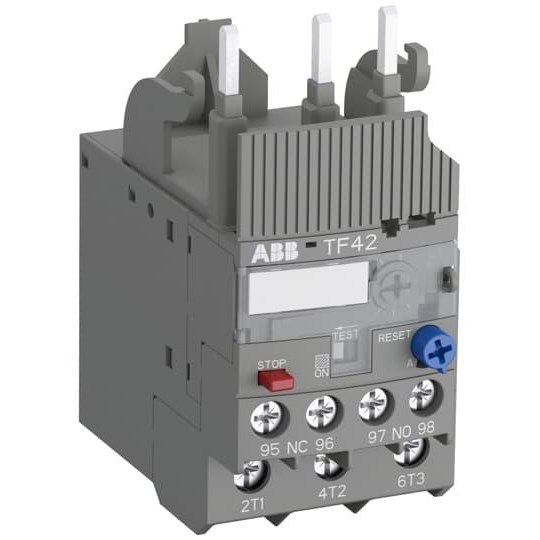

ABB TF42-38 Thermal Overload Relay 35-38A 690VAC 80A Fuse Type gG

Product Code: TF42-38

  • Suitable for AF09-AF38 contactors
  • Rated voltage up to 690 VAC
  • Trip class 10 with auto reset
  • Compact size: 45x88.3x70.5 mm
  • IP10, IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
35A to 38A
Trip Class
10

Dimensions & Physical Data

Depth
70.5mm
Height
88.3mm
Weight
0.13kg
Width
45mm
Suitable Product Range
AF09 AF12 AF16 AF26 AF30 AF38

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
