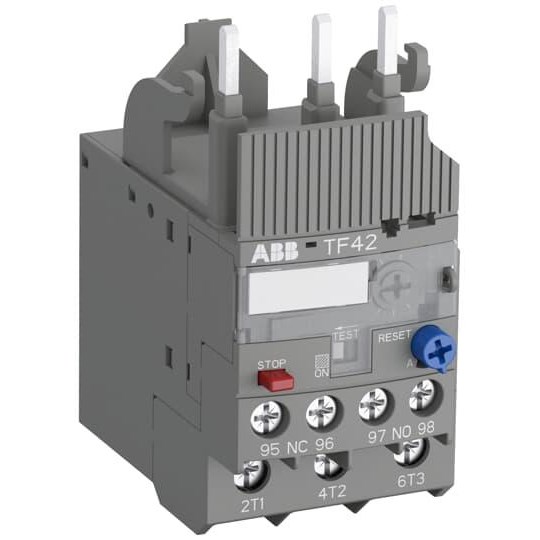

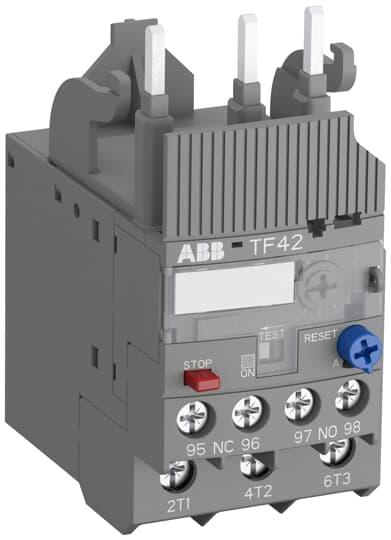

ABB TF42-29 Thermal Overload Relay 24-29A 690VAC 63A Fuse Type gG

Product Code: TF42-29

  • Rated voltage of 690 VAC for robust performance
  • Operates within -25 to 60°C temperature range
  • Direct mounting for easy installation
  • Automatic reset function enhances convenience
  • Compatible with AF09-AF38 contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690V AC
Suitable for Single Phase / Three Phase
Single Phase / Three Phase
Thermal Current Setting Range
24A to 29A
Trip Class
10

Dimensions & Physical Data

Depth
70.5mm
Height
88.3mm
Weight
0.145kg
Width
45mm
Suitable Product Range
AF09; AF12; AF16; AF26; AF30; AF38

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L
