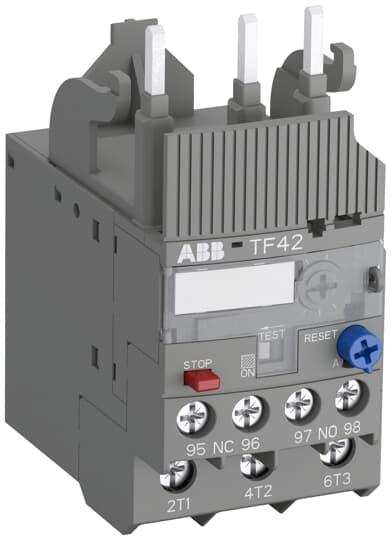

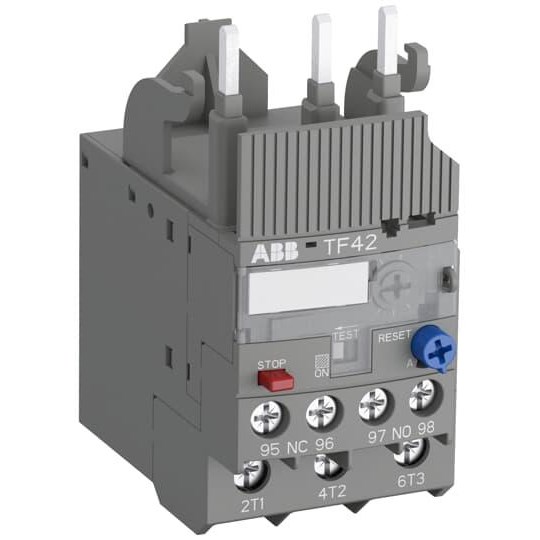

ABB TF42-24 Thermal Overload Relay 20-24A 690VAC 63A Fuse Type gG

Product Code: TF42-24

  • Rated for 690 VAC and 0.55 A
  • Operates at 50/60 Hz frequency
  • Compact size: 45x88.3x70.5 mm
  • Automatic reset function
  • Direct mounting capability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690 VAC
Suitable for Single Phase / Three Phase
Single Phase / Three Phase
Thermal Current Setting Range
20.0 ... 24.0 A
Trip Class
10

Dimensions & Physical Data

Depth
70.5 mm
Height
88.3 mm
Weight
0.145 kg
Width
45 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L

Accessories & Additional Information

Suitable Product Range
AF09; AF12; AF16; AF26; AF30; AF38

Documents

IPD Product Catalogue V17
