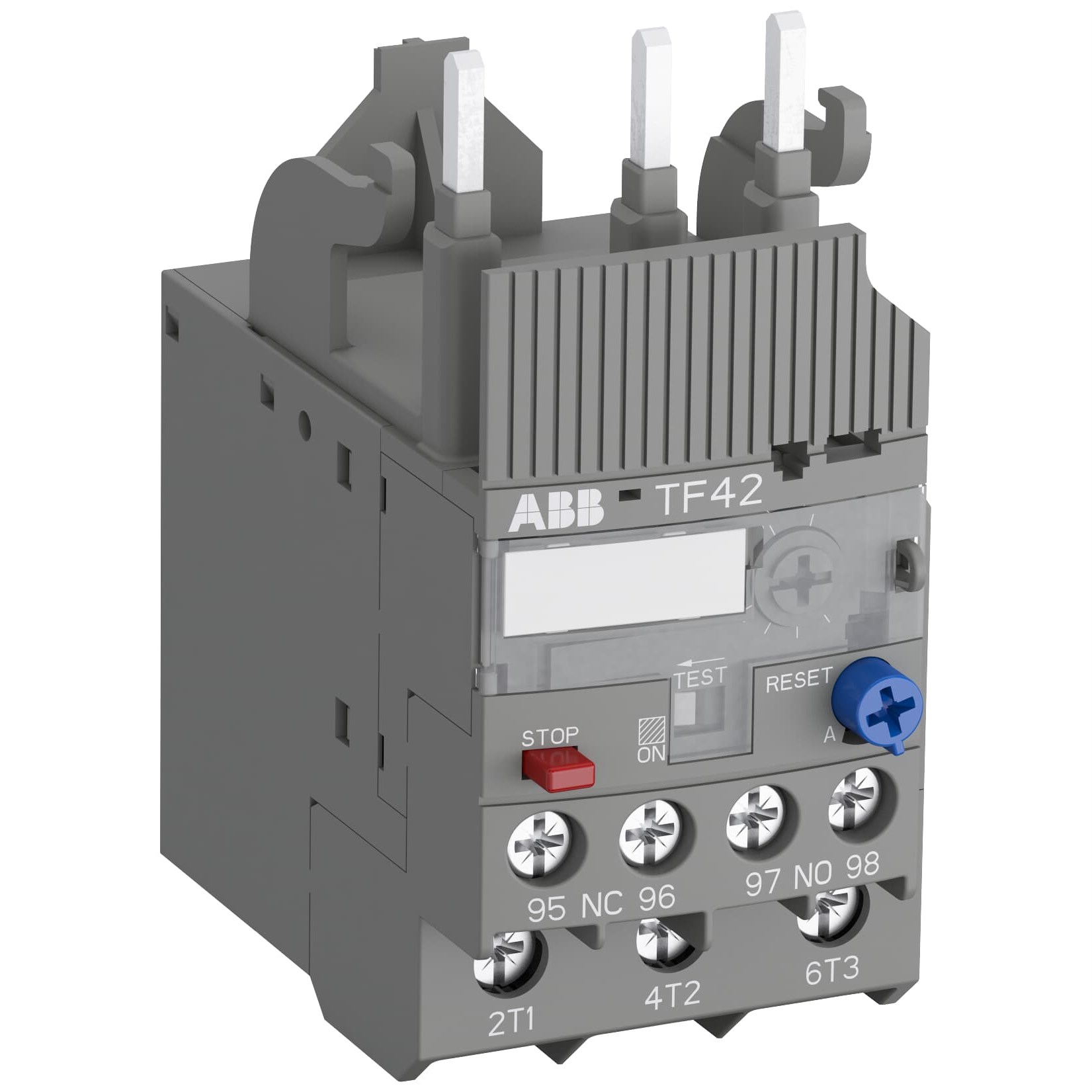

ABB TF42-2.3 Thermal Overload Relay 1.7-2.3A 690VAC 10A Fuse Type gG

Product Code: TF42-2.3

  • Rated voltage of 690 VAC
  • Current setting range: 1.7-2.3 A
  • Direct mounting for easy installation
  • Contact configuration: 1NC+1NO
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690V AC
Suitable for Single Phase / Three Phase
Single Phase / Three Phase
Thermal Current Setting Range
1.7A to 2.3A
Trip Class
10

Dimensions & Physical Data

Depth
70.5mm
Height
88.3mm
Weight
0.13kg
Width
45mm
Suitable Product Range
AF09; AF12; AF16; AF26; AF30; AF38

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L
