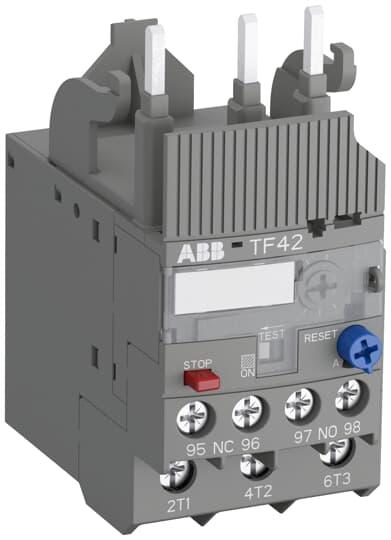

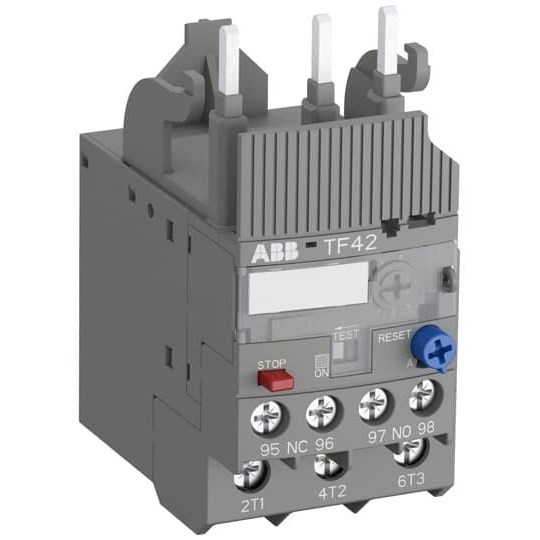

ABB TF42-13 Thermal Overload Relay 10-13A 690VAC 40A Fuse Type gG

Product Code: TF42-13

  • Rated for 690 VAC and 0.55 A
  • Trip Class 10 with auto reset
  • IP10/IP20 protection rating
  • Direct mounting, compact size
  • Suitable with AF09-AF38 series
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690V AC
Suitable for Single Phase / Three Phase
Single Phase / Three Phase
Thermal Current Setting Range
10A to 13A
Trip Class
10

Dimensions & Physical Data

Depth
70.5mm
Height
88.3mm
Weight
0.13kg
Width
45mm
Suitable Product Range
AF09; AF12; AF16; AF26; AF30; AF38

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L

Documents

IPD Product Catalogue V17
