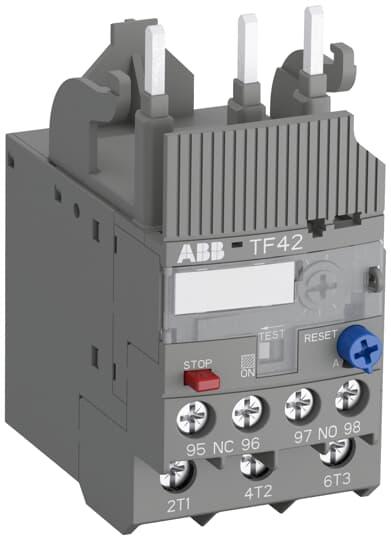

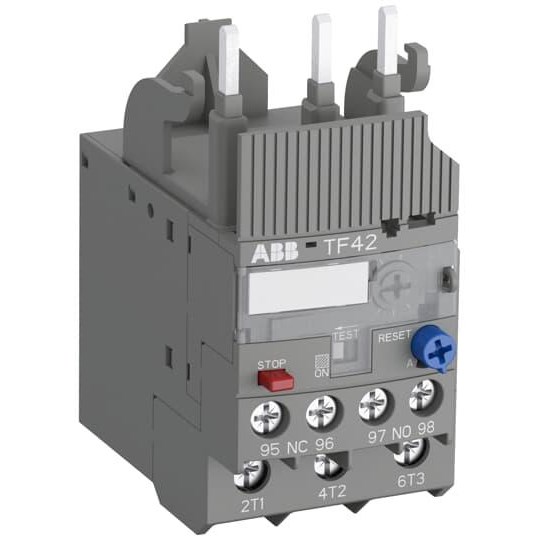

ABB TF42-10 Thermal Overload Relay 7.6-10A 690VAC 35A Fuse Type gG

Product Code: TF42-10

  • Rated for 690 VAC, 0.55 A and 50/60 Hz
  • Contact configuration: 1NC+1NO
  • Trip Class 10 with auto reset function
  • Direct mount, dimensions: W45 x H88.3 x D70.5 mm
  • Suitable with AF09-AF38 devices
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690 VAC
Suitable for Single Phase / Three Phase
Single Phase / Three Phase
Thermal Current Setting Range
7.60 ... 10.0 A
Trip Class
10

Dimensions & Physical Data

Depth
70.5 mm
Height
88.3 mm
Weight
0.130 kg
Width
45 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L

Accessories & Additional Information

Suitable Product Range
AF09; AF12; AF16; AF26; AF30; AF38
