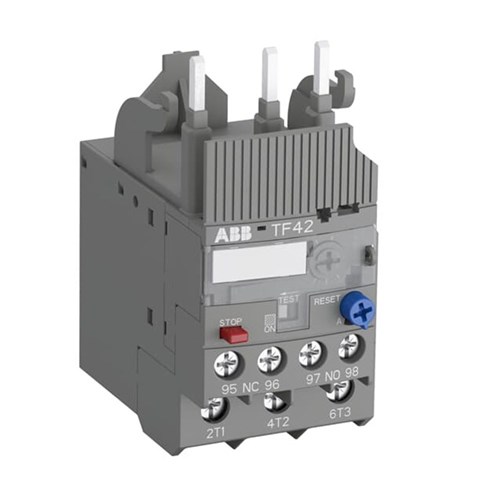

ABB TF42-1.7 Thermal Overload Relay 1.3-1.7A 690VAC 10A Fuse Type gG

Product Code: TF42-1.7

  • Rated voltage up to 690 VAC
  • Contact config: 1NC+1NO
  • Trip class: Class 10
  • Direct mounting type
  • Operating temp: -25 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690 VAC
Suitable for Single Phase / Three Phase
Single Phase / Three Phase
Thermal Current Setting Range
1.30 ... 1.70 A
Trip Class
10

Dimensions & Physical Data

Depth
70.5 mm
Height
88.3 mm
Weight
0.130 kg
Width
45 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1; IEC 60335-2-40 A2L

Accessories & Additional Information

Suitable Product Range
AF09; AF12; AF16; AF26; AF30; AF38

Documents

IPD Product Catalogue V17
