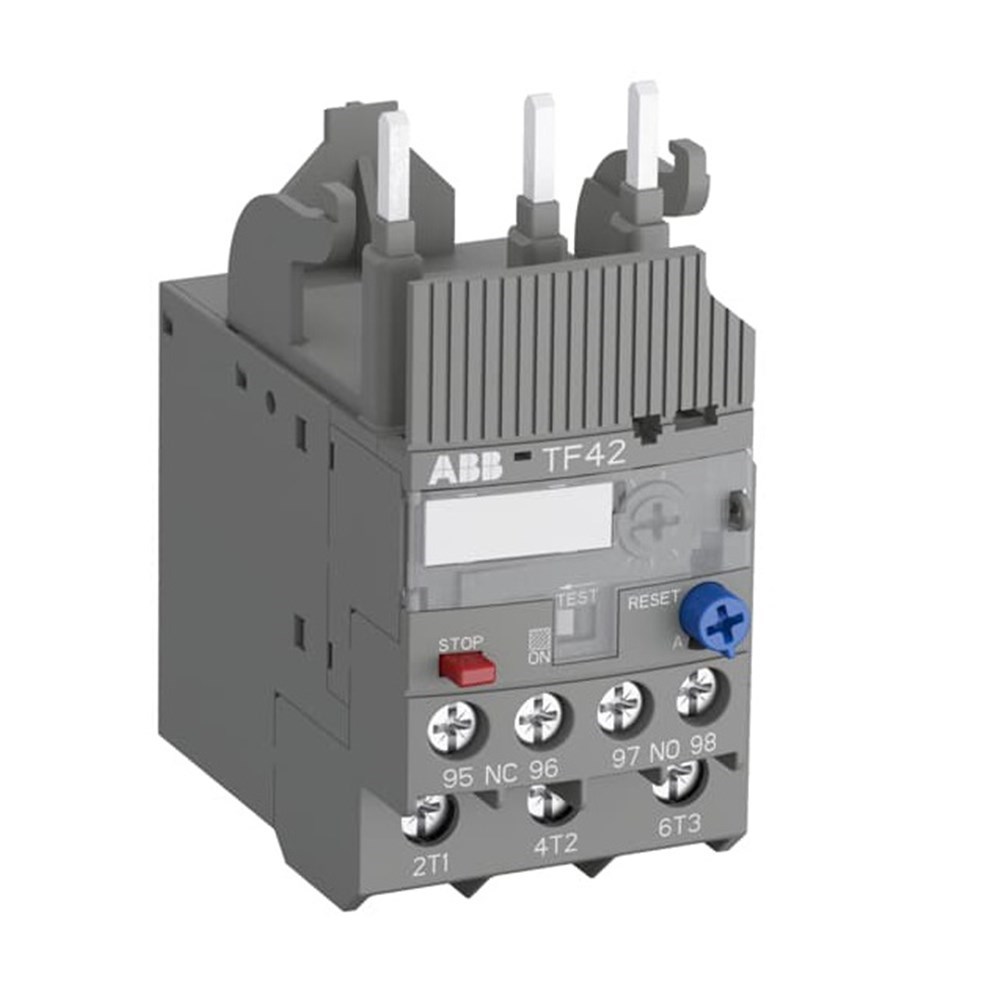

ABB TF42-0.41 Thermal Overload Relay 0.31-0.41A 690VAC 2A Fuse Type gG

Product Code: TF42-0.41

  • Suitable for AF09-AF38 contactors
  • Rated voltage up to 690 VAC
  • Automatic reset function
  • Direct mounting capability
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
0.31A to 0.41A
Trip Class
10

Dimensions & Physical Data

Depth
70.5mm
Height
88.3mm
Weight
0.13kg
Width
45mm
Suitable Product Range
AF09 AF12 AF16 AF26 AF30 AF38

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Documents

IPD Product Catalogue V17
