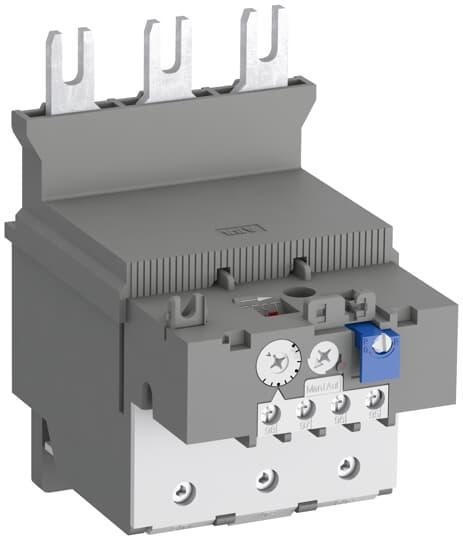

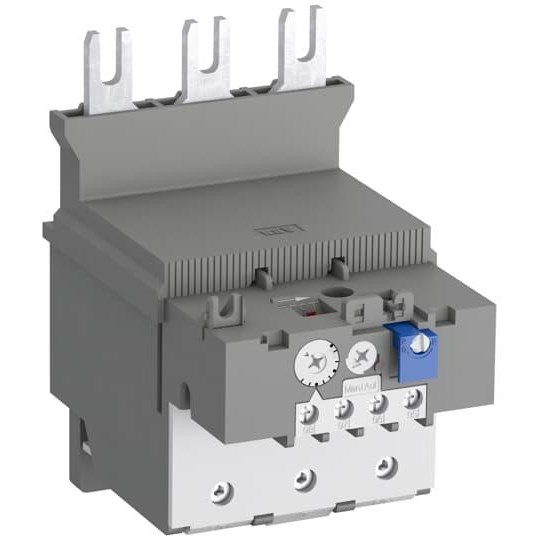

ABB TF140DU-90 Thermal Overload Relay 66-90A 690VAC 200A Fuse Type gG

Product Code: TF140DU-90

  • Rated for 690 VAC & 0.25 A
  • Contact config: 1NC+1NO
  • Trip Class: Class 10
  • Direct mounting, IP20 protection
  • Suitable with AF116-AF140 contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
66A to 90A
Trip Class
10A

Dimensions & Physical Data

Depth
126mm
Height
140mm
Weight
0.82kg
Width
89mm
Suitable Product Range
AF116 AF140

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
