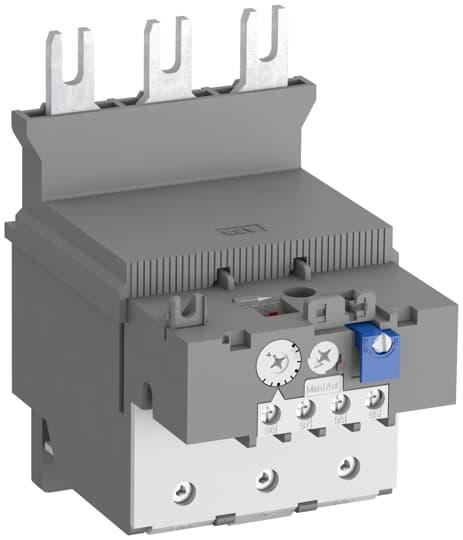

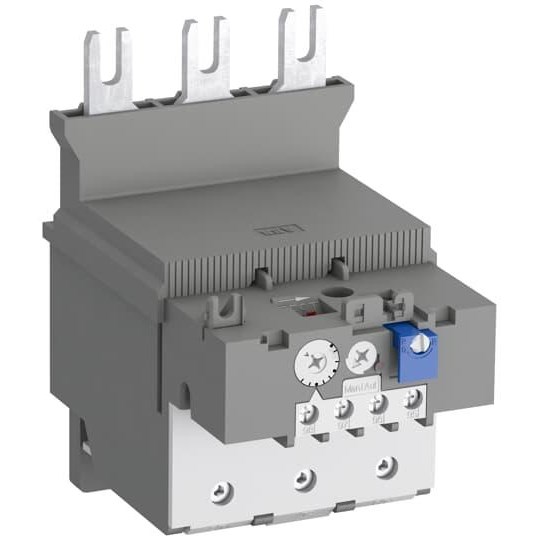

ABB TF140DU-135 Thermal Overload Relay 100-135A 690VAC 224A Fuse Type gG

Product Code: TF140DU-135

  • Rated for 690 VAC and 0.25 A
  • Direct mounting with AF116-AF140 contactors
  • IP20 protection, Class 10 trip
  • Operates in -25 to 55°C range
  • Meets IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
100A to 135A
Trip Class
10A

Dimensions & Physical Data

Depth
126mm
Height
140mm
Weight
0.82kg
Width
89mm
Suitable Product Range
AF116 AF140

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1

Documents

IPD Product Catalogue V17
