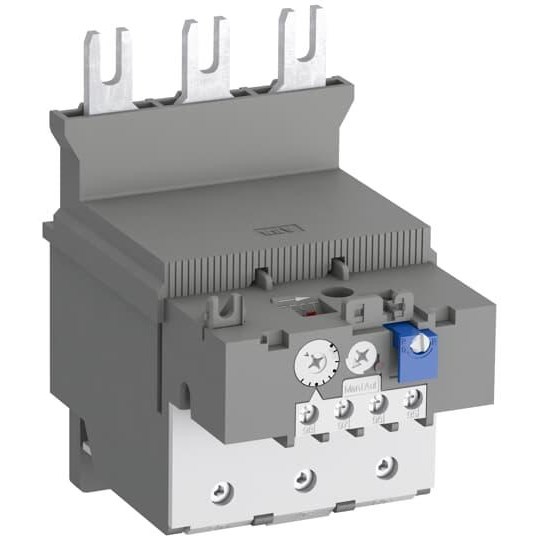

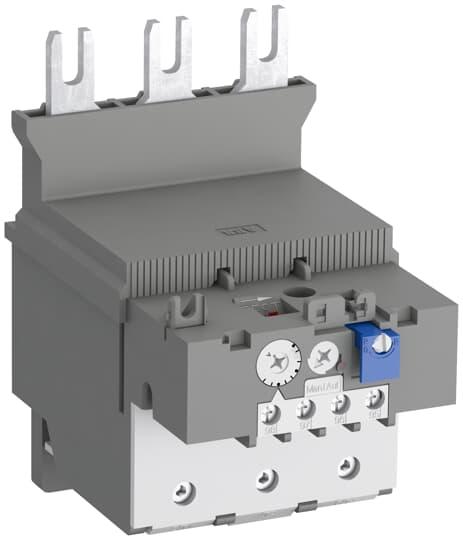

ABB TF140DU-110 Thermal Overload Relay 80-110A 690VAC 224A Fuse Type gG

Product Code: TF140DU-110

  • Rated voltage up to 690 VAC
  • Current setting range: 80-110 A
  • Trip class of Class 10 for protection
  • IP20 protection rating
  • Compatible with AF116-AF140 contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
80A to 110A
Trip Class
10A

Dimensions & Physical Data

Depth
126mm
Height
140mm
Weight
0.82kg
Width
89mm
Suitable Product Range
AF116 AF140

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1

Documents

IPD Product Catalogue V17
