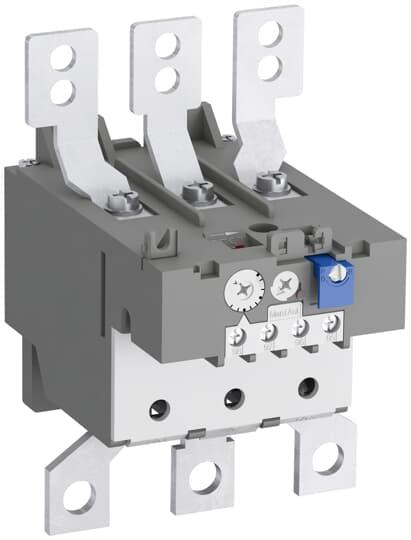

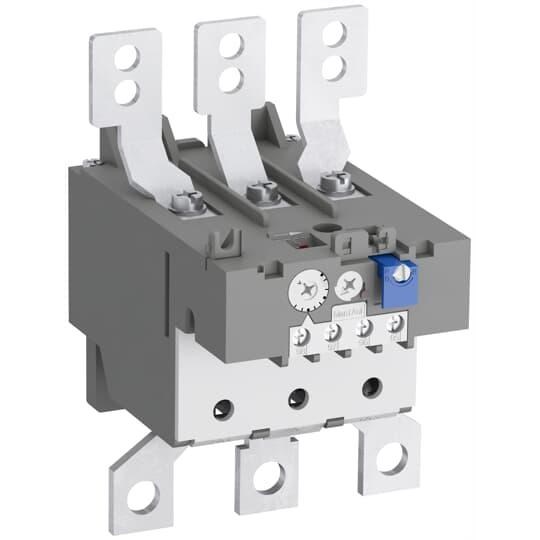

ABB TA200DU-175 Thermal Overload Relay 130-175A 690VAC 315A Fuse Type gG/250A aM

Product Code: TA200DU-175

  • Rated for 690 VAC and 0.25 A
  • Operates at 50/60 Hz frequency
  • IP20 protection rating
  • Direct mounting capability
  • Compatible with AF190-AF205 contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
130A to 175A
Trip Class
10A

Dimensions & Physical Data

Depth
126mm
Height
151mm
Weight
0.76kg
Width
104mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
