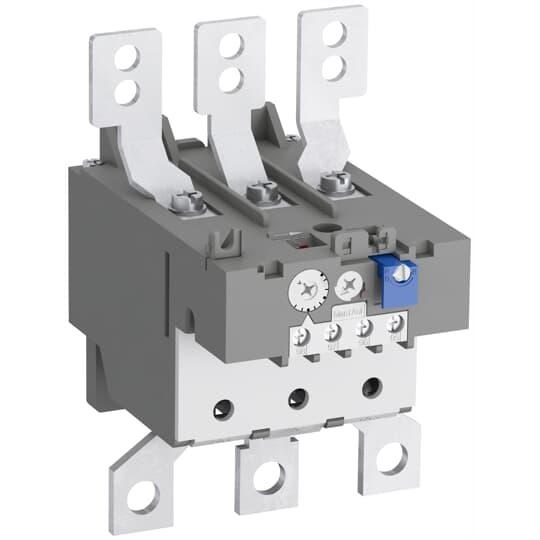

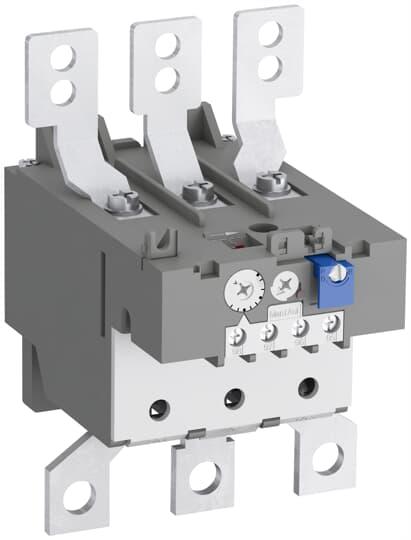

ABB TA200DU-150 Thermal Overload Relay 110-150A 690VAC 250A Fuse Type gG/200A aM

Product Code: TA200DU-150

  • Operates at 690 VAC, 0.25 A, 50/60 Hz
  • IP20 protection for safe use
  • Direct mounting for easy installation
  • Compatible with AF190-AF205 contactors
  • Automatic reset function
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
110A to 150A
Trip Class
10A

Dimensions & Physical Data

Depth
126mm
Height
151mm
Weight
0.76kg
Width
104mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1

Documents

IPD Product Catalogue V17
