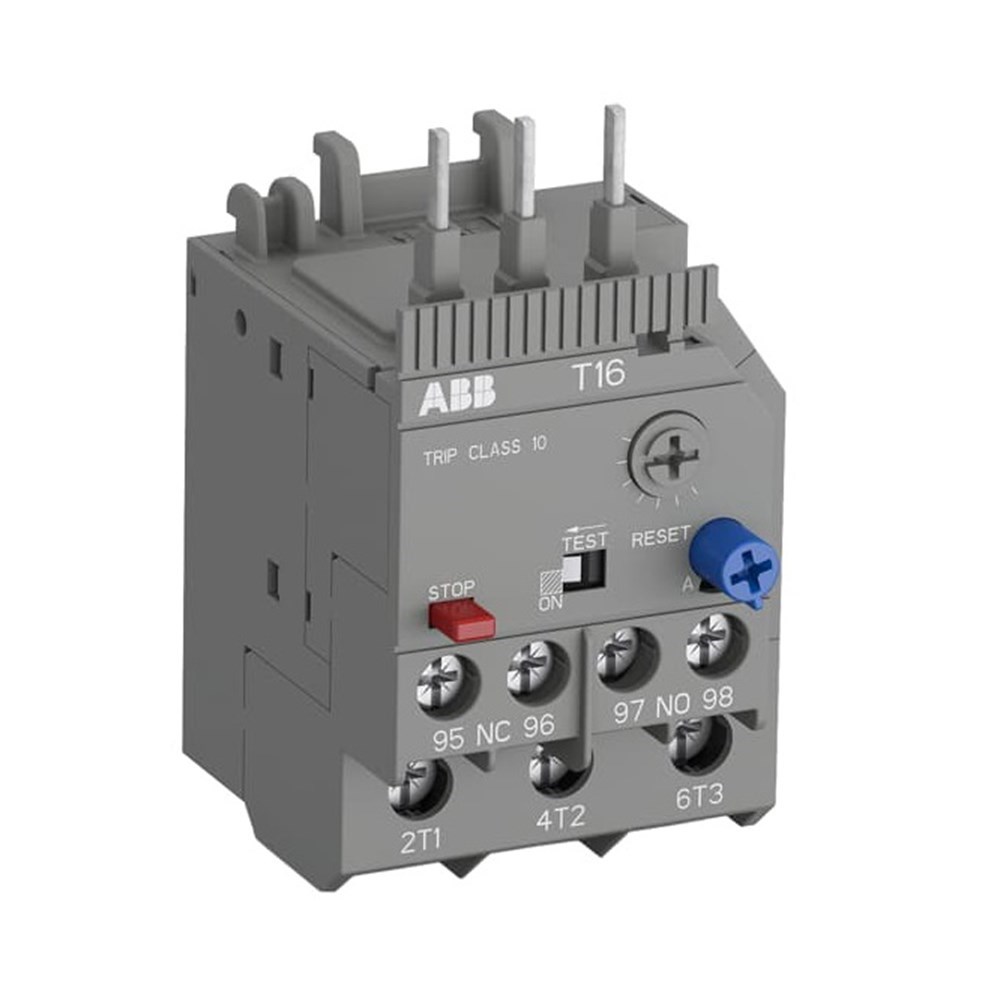

ABB T16-7.6 Thermal Overload Relay 5.7-7.6A 690VAC 35A Fuse Type gG

Product Code: T16-7.6

  • Rated voltage: 690 VAC, current: 0.55 A
  • Trip class 10, automatic reset function
  • Direct mount; compact size: 45x76.7x53.5 mm
  • Compatible with B6, BC6, VB6 & more
  • Meets IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600 V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
5.70 ... 7.60 A
Trip Class
10

Dimensions & Physical Data

Depth
53.5 mm
Height
76.7 mm
Weight
0.1 kg
Width
45 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Accessories & Additional Information

Suitable Product Range
B6 BC6 B7 BC7 VB6 VBC6 VB7 VBC7 MC1 MC2

Documents

IPD Product Catalogue V17
