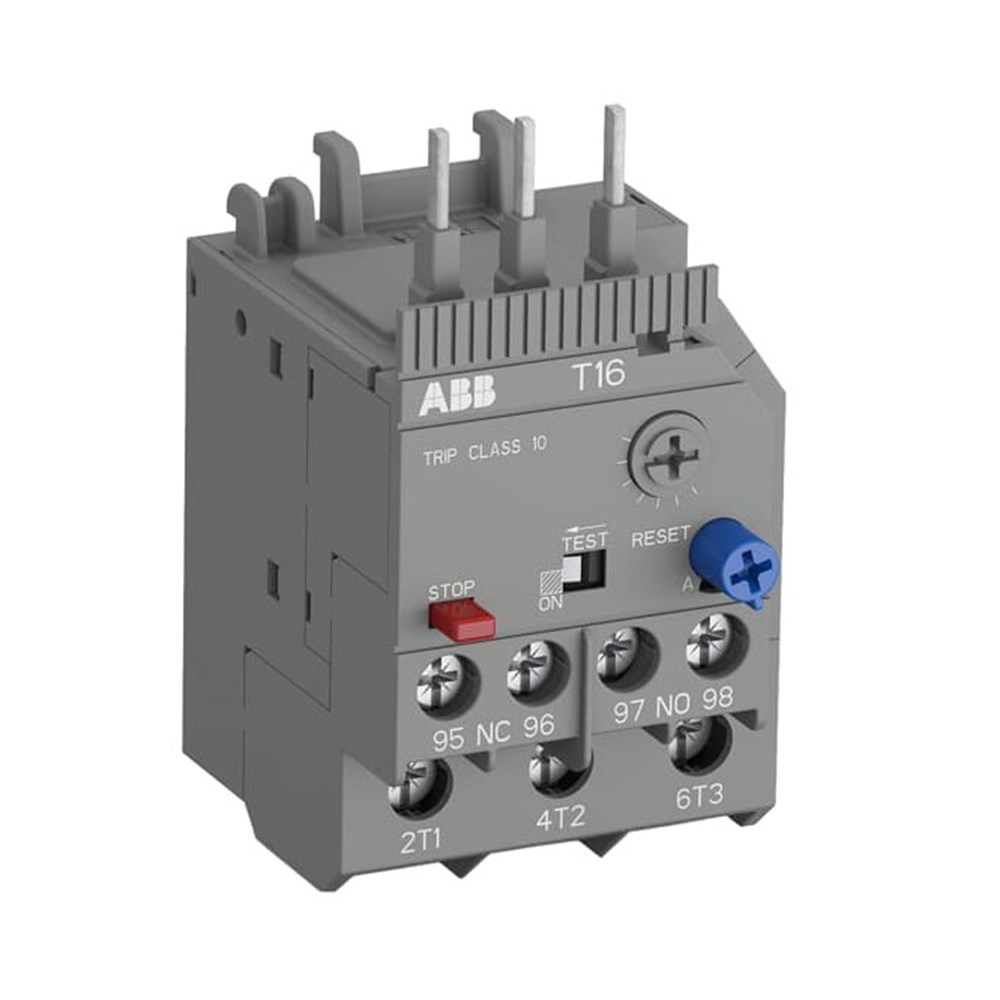

ABB T16-4.2 Thermal Overload Relay 3.1-4.2A 690VAC 20A Fuse Type gG

Product Code: T16-4.2

  • Rated for 690 VAC and 0.55 A
  • Contact config: 1NC+1NO
  • Trip class: Class 10 with auto reset
  • Direct mount, compact size (45x76.7x53.5 mm)
  • Complies with IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600 V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
3.10 ... 4.20 A
Trip Class
10

Dimensions & Physical Data

Depth
53.5 mm
Height
76.7 mm
Weight
0.1 kg
Width
45 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Accessories & Additional Information

Suitable Product Range
B6 BC6 B7 BC7 VB6 VBC6 VB7 VBC7 MC1 MC2
