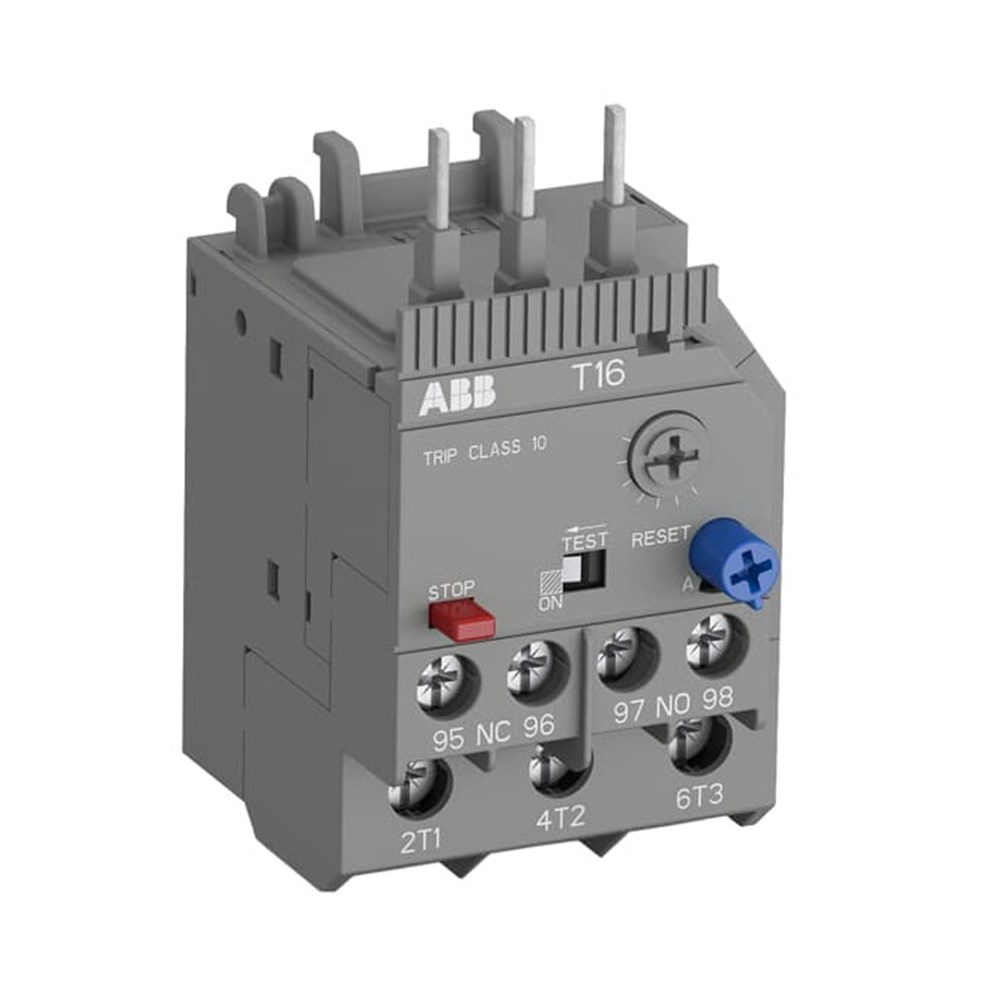

ABB T16-2.3 Thermal Overload Relay 1.7-2.3A 690VAC 10A Fuse Type gG

Product Code: T16-2.3

  • Rated voltage of 690 VAC
  • Operates in -25 to 60°C range
  • Direct mounting type
  • Automatic reset function
  • Meets IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
1.7A to 2.3A
Trip Class
10

Dimensions & Physical Data

Depth
53.5mm
Height
76.7mm
Weight
0.1kg
Width
45mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
