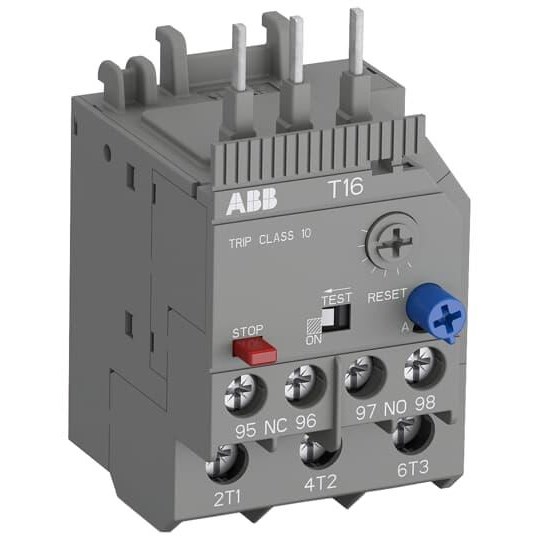

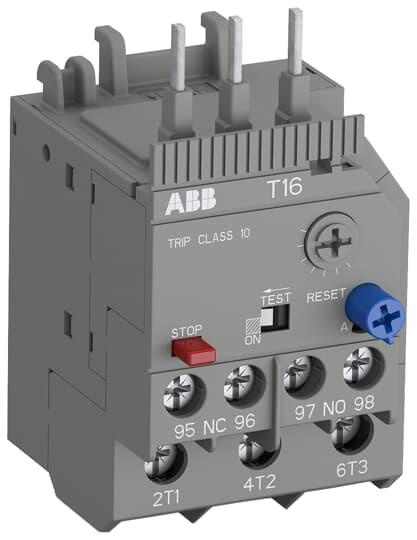

ABB T16-16 Thermal Overload Relay 13-16A 690VAC 40A Fuse Type gG

Product Code: T16-16

  • Rated for 690 VAC, 0.55 A, 50/60 Hz operation
  • Features IP10 and IP20 protection levels
  • Compact size: 45 mm W x 76.7 mm H x 53.5 mm D
  • Compatible with B6, BC6, VB6 series
  • Automatic reset function for convenience
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600 V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
13 ... 16 A
Trip Class
10

Dimensions & Physical Data

Depth
53.5 mm
Height
76.7 mm
Weight
0.1 kg
Width
45 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Accessories & Additional Information

Suitable Product Range
B6 BC6 B7 BC7 VB6 VBC6 VB7 VBC7 MC1 MC2
