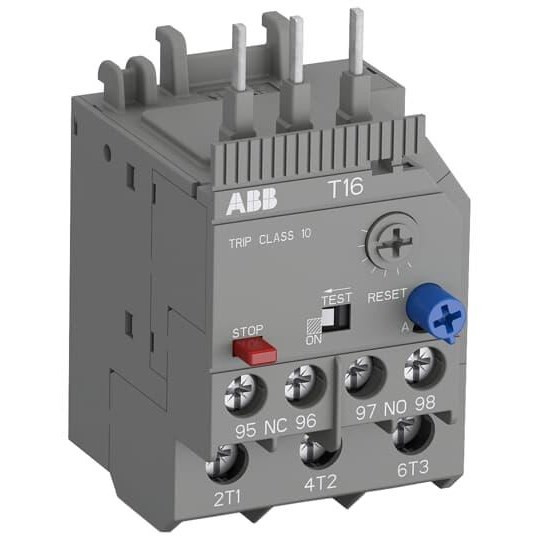

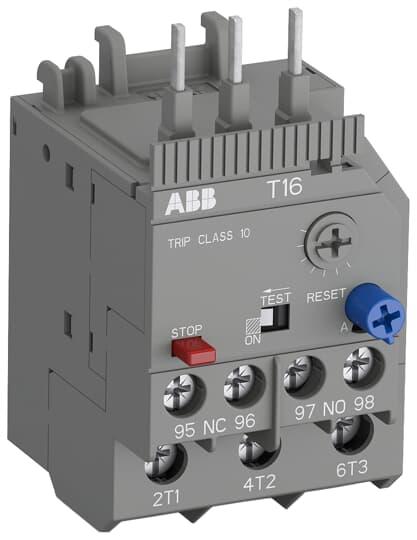

ABB T16-13 Thermal Overload Relay 10-13A 690VAC 40A Fuse Type gG

Product Code: T16-13

  • Rated for 690 VAC, 0.55 A
  • Contact config: 1NC+1NO
  • Direct mounting design
  • Temp range: -25 to 60°C
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
10A to 13A
Trip Class
10

Dimensions & Physical Data

Depth
53.5mm
Height
76.7mm
Weight
0.1kg
Width
45mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Documents

IPD Product Catalogue V17
