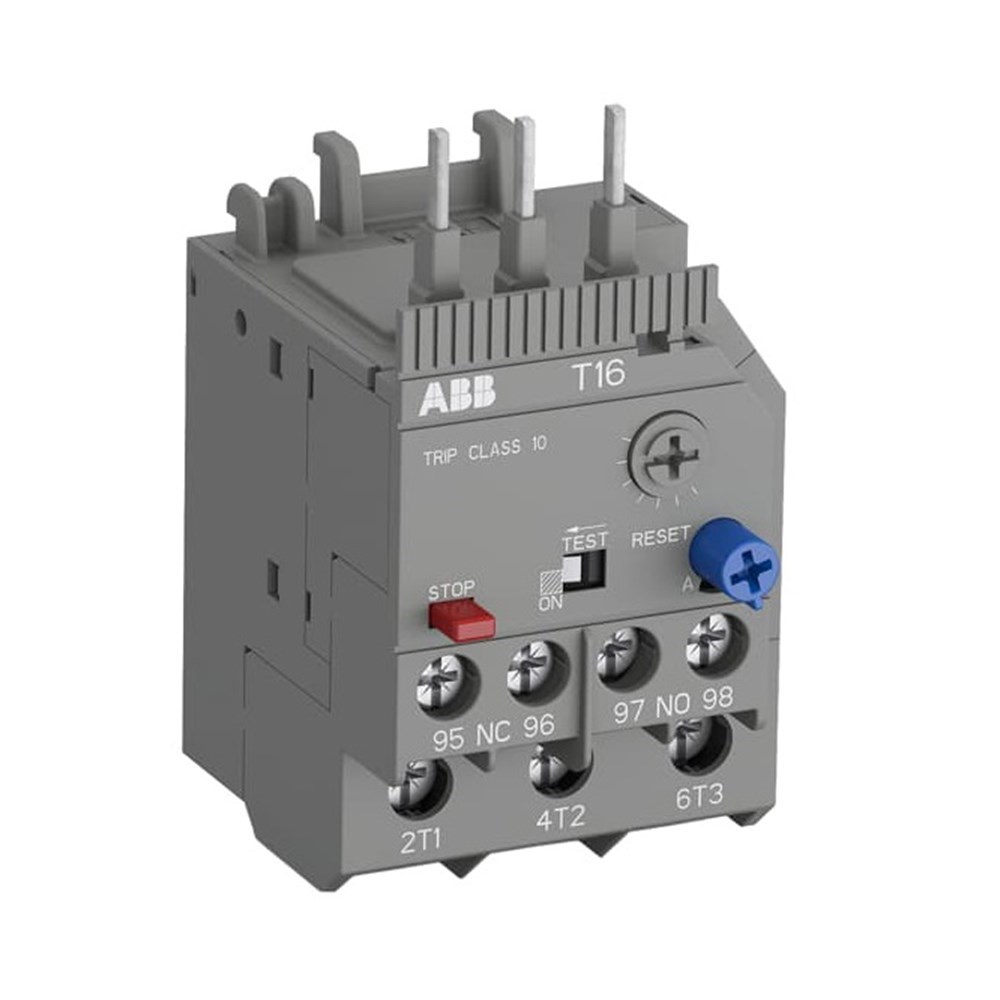

ABB T16-1.7 Thermal Overload Relay 1.3-1.7A 690VAC 10A Fuse Type gG

Product Code: T16-1.7

  • Rated Voltage: 690 VAC
  • Current Range: 1.3-1.7 A
  • Contact Config: 1NC+1NO
  • Trip Class: Class 10
  • Direct Mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600 V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
1.30 ... 1.70 A
Trip Class
10

Dimensions & Physical Data

Depth
53.5 mm
Height
76.7 mm
Weight
0.1 kg
Width
45 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Accessories & Additional Information

Suitable Product Range
B6 BC6 B7 BC7 VB6 VBC6 VB7 VBC7 MC1 MC2
