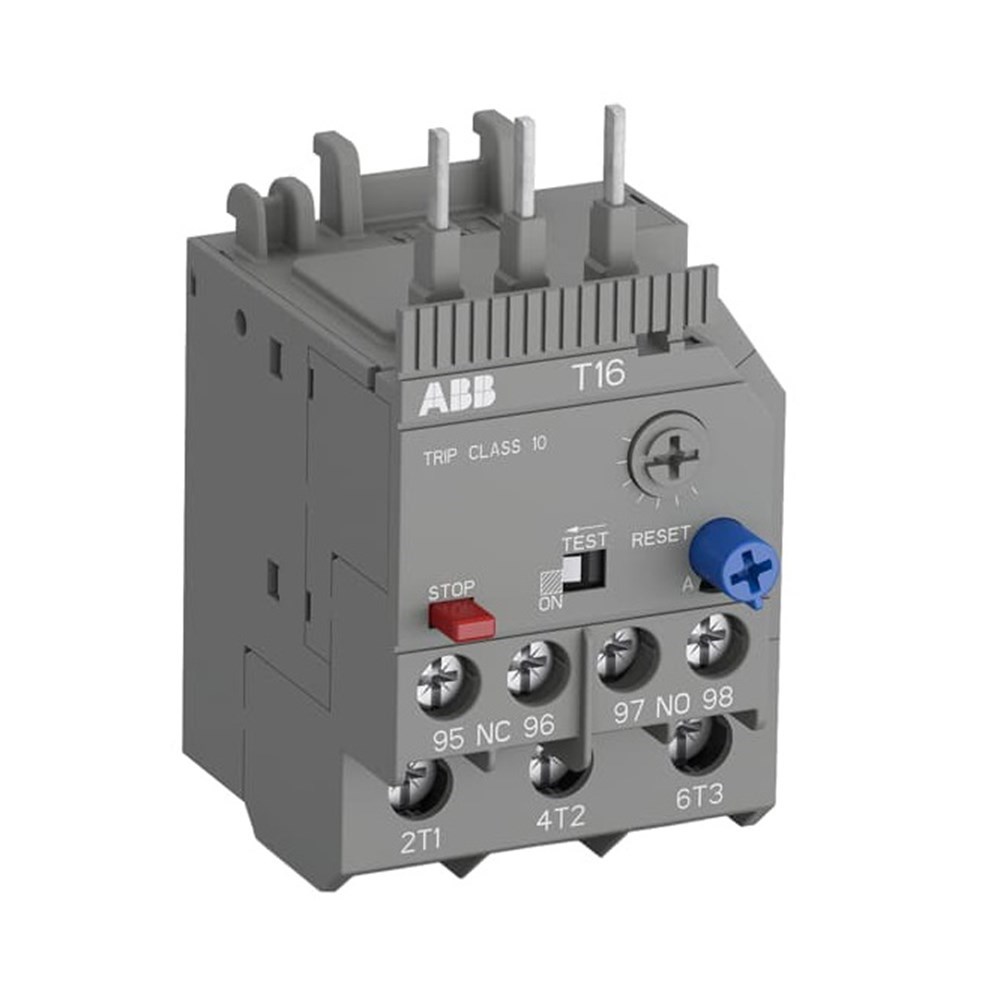

ABB T16-0.41 Thermal Overload Relay 0.31-0.41A 690VAC 2A Fuse Type gG

Product Code: T16-0.41

  • Rated voltage of 690 VAC
  • Current setting range: 0.31-0.41 A
  • Contact config: 1NC+1NO
  • Trip class: Class 10 with auto reset
  • Suitable for B6, BC6, VB6 & more
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
0.31A to 0.41A
Trip Class
10

Dimensions & Physical Data

Depth
53.5mm
Height
76.7mm
Weight
0.1kg
Width
45mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
