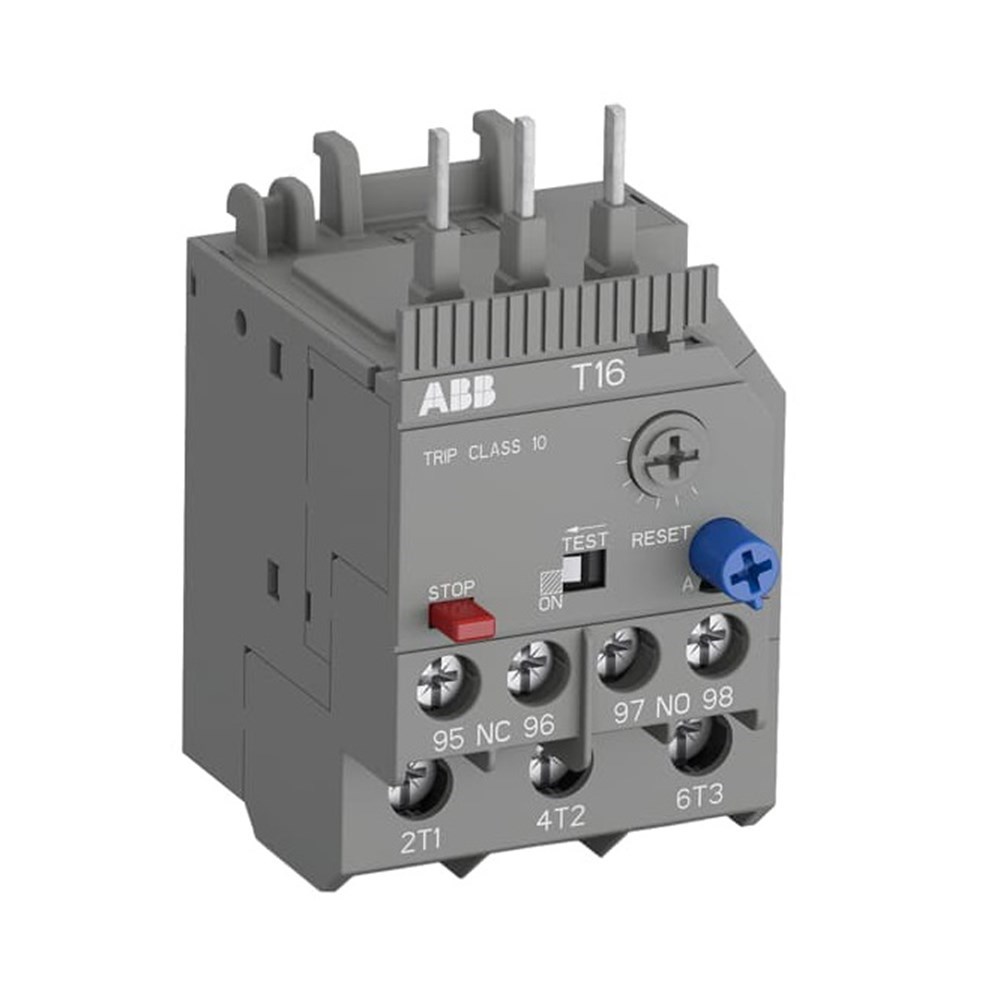

ABB T16-0.23 Thermal Overload Relay 0.17-0.23A 690VAC 1A Fuse Type T

Product Code: T16-0.23

  • Rated for 690 VAC, 0.55 A, 50/60 Hz
  • Contact config: 1NC+1NO
  • Trip Class: Class 10 protection
  • Direct mount; compact size: 45x76.7x53.5 mm
  • Suitable with B6, BC6, VB6 series
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
0.17A to 0.23A
Trip Class
10

Dimensions & Physical Data

Depth
53.5mm
Height
76.7mm
Weight
0.1kg
Width
45mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
