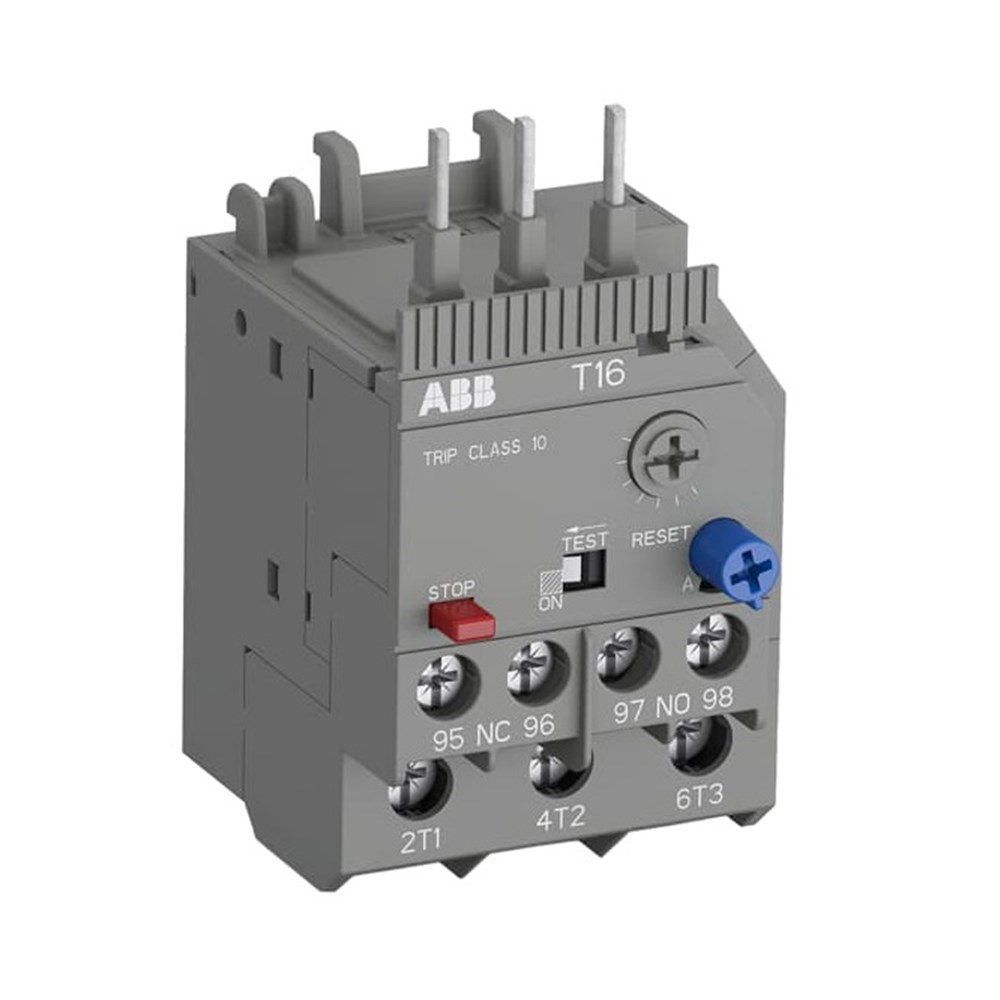

ABB T16-0.13 Thermal Overload Relay 0.1-0.13A 690VAC 0.5A Fuse Type T

Product Code: T16-0.13

  • Rated Voltage: 690 VAC
  • Current Setting Range: 0.1-0.13 A
  • Contact Config: 1NC+1NO
  • Trip Class: Class 10
  • Direct Mounting Type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermal Overload Relays
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600V AC
Suitable for Single Phase / Three Phase
Yes
Thermal Current Setting Range
0.1A to 0.13A
Trip Class
10

Dimensions & Physical Data

Depth
53.5mm
Height
76.7mm
Weight
0.1kg
Width
45mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Documents

IPD Product Catalogue V17
