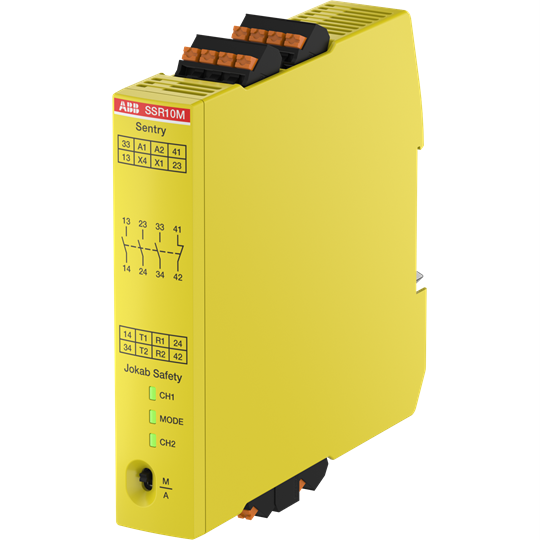

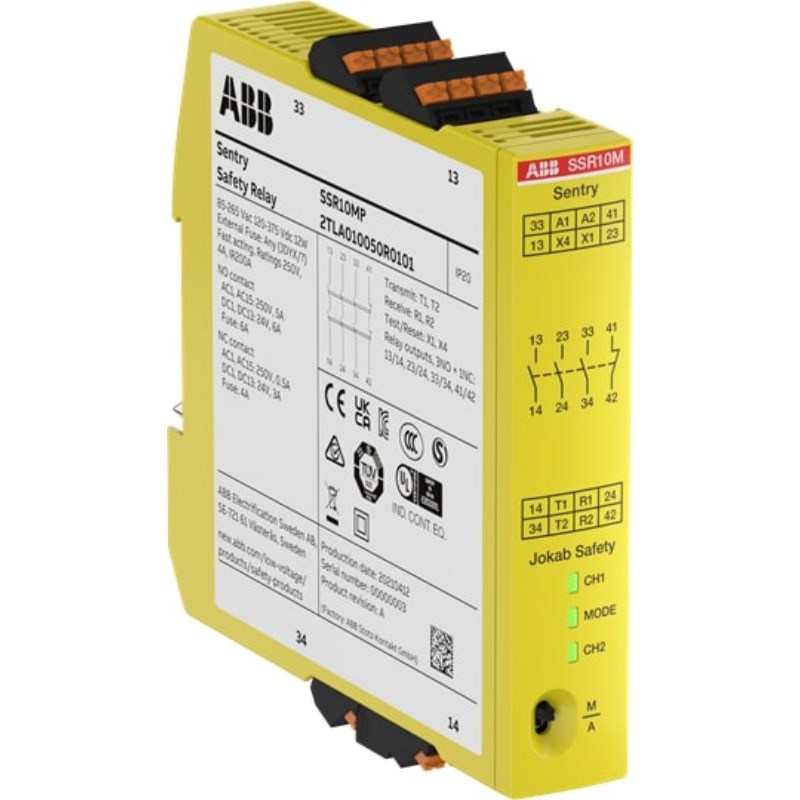

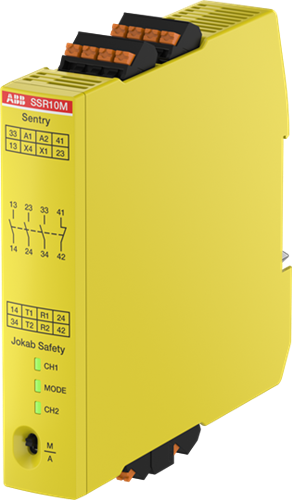

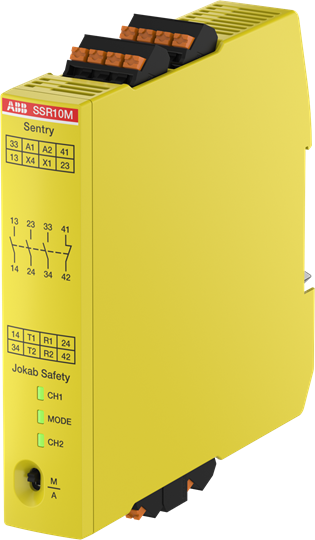

ABB SSR10MP Safety Relay 120-375VDC, 85-265VAC 3NO+1NC

Product Code: SSR10MP

  • Supports 120-375 VDC, 85-265 VAC operation
  • Handles up to 5 A current
  • Compact size: 22.5 mm width
  • IP20 protection rating
  • Complies with ISO 13849 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay
Brand
ABB
Series
SSR

Electrical

Supply Voltage
85 to 265 V AC, 120 to 375 V DC

Mechanical

Housing Colour
Yellow
Housing Material
PA66 with 25% fiberglass (UL94 V0)

Dimensions & Physical Data

Height
120mm
Weight
0.214kg
Width
22.5mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP20

Safety, Standards & Compliance

Safety Category
Cat. 4
Safety Integrity Level
SIL 3
Performance Level
PL e
