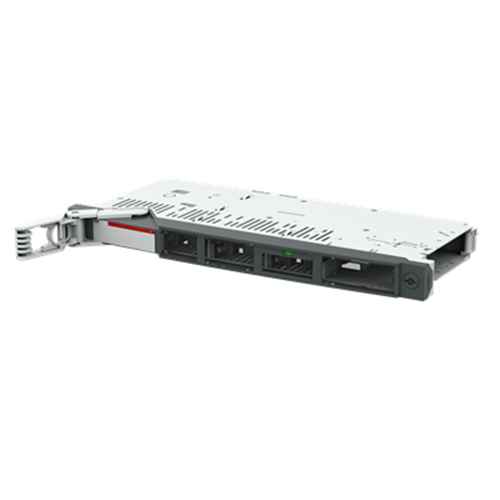

ABB SLIMLINE FUSE SWITCH 160A 2P 185MM PHASE CENTRES 10MM BAR XRG00-185/10-DC

Product Code: XRG00-185/10-DC

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector Fuse
Brand
ABB
Series
SlimLine XR Gold
Application
Busbar-mounted switch disconnector fuse for low-voltage distribution

Electrical

Power Loss
33W
Rated Current (In)
160A
Rated Voltage (Ur)
690V AC
No. of Poles
2P

Mechanical

Fixing Centres
185mm
Mounting
10 mm Busbar mounted
Size Code
NH00
Connection/Termination
Bolt

Dimensions & Physical Data

Depth
50mm
Height
335mm
Weight
3.52kg
Width
590mm

Environmental

IP Rating
IP41 front

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
