Specifications

Product Type Switch Disconnector	Brand ABB	Series SHD 200
Application Switching of resistive loads, including moderate overloads - frequent actuation (DC-21 A); switching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22 A)

No. of Poles (Total) 2	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 440V AC
Power Loss 2.53W	Rated Current (In) 40A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 415V AC	Terminal Type Screw Terminals (Cage terminal)	Electrical Life 10,000 ops AC, 1,500 ops. DC
Mechanical Life 20000 cycles

Conductor Cross Section Flexible

0.75mm² to 16mm²

Conductor Cross Section Solid Core

0.75mm² to 25mm²

Housing Material

Insulation group II, RAL 7035

Depth 69mm	Height 85mm	Weight 0.15kg
Width 35mm	Width in No. of Modular Spacing 2	Pole Width 17.5mm

Pollution Degree

Storage Temperature

-40°C to 70°C

Operating Temperature

-25°C to 55°C

Standards and Approvals

IEC/EN 60947-3, CE, RoHS, VDE

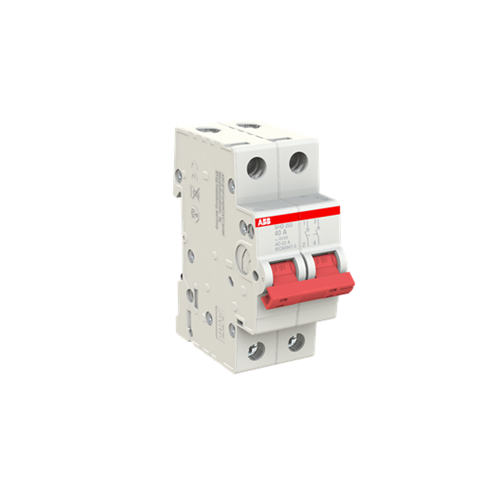

ABB SHD20240 Switch Disconnector IP20 40A 2-P 400/415VAC DIN Rail Mount
