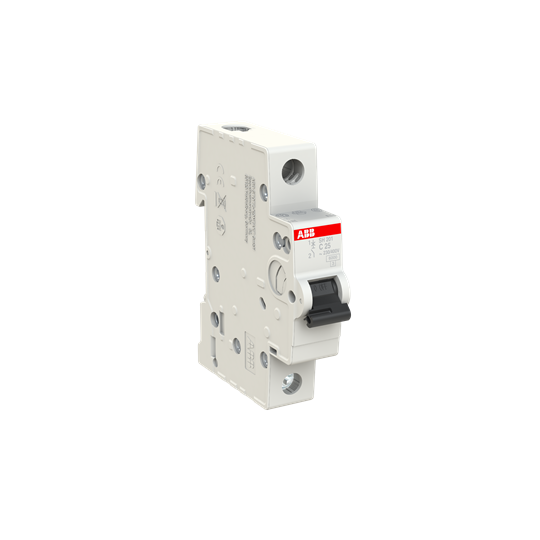

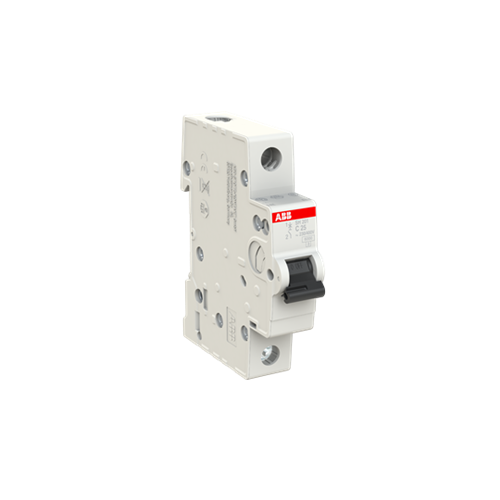

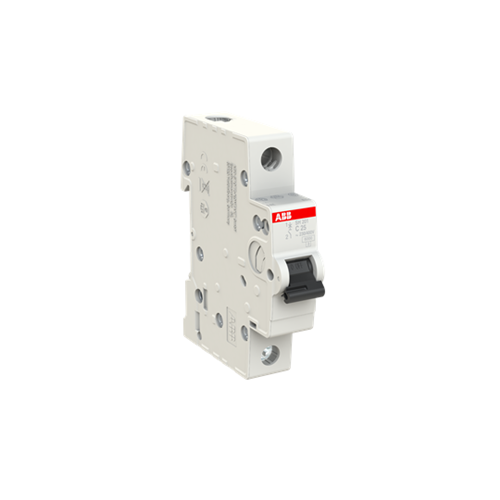

ABB SH201C25 Miniature Circuit Breaker 6 kA 1-P 25A 230/400VAC C-Curve

Product Code: SH201C25

  • Rated current of 25 A for reliable performance
  • Breaking capacity of 6kA ensures safety
  • Compact size with a width of 17.5 mm
  • IP20 protection for indoor use
  • Complies with AS/NZS 60898-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Circuit Breaker (MCB)
Brand
ABB
Series
SH200
Application
Residential

Electrical

No. of Poles (Total)
1
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Power Loss
3.2W
Rated Current (In)
25A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
acc. to IEC 60898-1 230 V AC
Trip Curve
C
Terminal Type
Screw Terminals
Electrical Life
20000 AC cycle
Mechanical Life
20000 cycles

Mechanical

Conductor Cross Section Flexible
0.75mm² to 16mm²
Conductor Cross Section Solid Core
0.75mm² to 25mm²
Housing Material
Insulation Group II, RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.105kg
Width
17.5mm
Width in No. of Modular Spacing
1
Pole Width
17.5mm

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
2
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP20 Enclosure with Cover IP40

Safety, Standards & Compliance

Standards and Approvals
IEC 60898, IEC/EN 60898-1

Description
