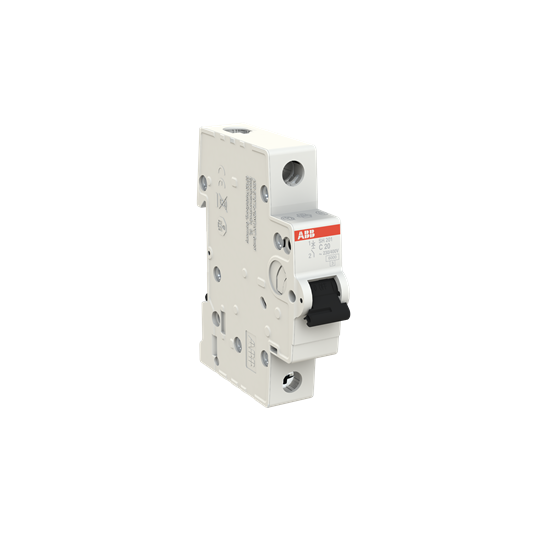

ABB SH201C20 Miniature Circuit Breaker 6 kA 1-P 20A 230/400VAC C-Curve

Product Code: SH201C20

  • Rated for 20 A with 6kA breaking capacity
  • Operates at 230/400 VAC, 50/60 Hz
  • Compact design: 17.5 mm width
  • IP20 protection with screw clamp terminals
  • Complies with AS/NZS 60898-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Circuit Breaker (MCB)
Brand
ABB
Series
SH200
Application
Residential

Electrical

No. of Poles (Total)
1
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Power Loss
2.5W
Rated Current (In)
20A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
acc. to IEC 60898-1 230 V AC
Trip Curve
C
Terminal Type
Screw Terminals
Electrical Life
20000 AC cycle
Mechanical Life
20000 cycles

Mechanical

Conductor Cross Section Flexible
0.75mm² to 16mm²
Conductor Cross Section Solid Core
0.75mm² to 25mm²
Housing Material
Insulation Group II, RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.105kg
Width
17.5mm
Width in No. of Modular Spacing
1
Pole Width
17.5mm

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
2
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP20 Enclosure with Cover IP40

Safety, Standards & Compliance

Standards and Approvals
IEC 60898, IEC/EN 60898-1

Documents

IPD Product Catalogue V17
