Specifications

Product Type MCB	Brand ABB	Series SH200
Application Residential

No. of Poles (Total) 1	Rated Impulse Withstand Voltage (Uimp) 4 kV (test voltage 6.2 kV at sea level, 5 kV at 2,000 m)	Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Power Loss 2.5 W	Rated Current (In) 2 A	Rated Frequency 50 / 60 Hz
Rated Voltage (Ur) acc. to IEC 60898-1 230 V AC	Trip Curve C	Terminal Type Screw Terminals
Electrical Life 20000 AC cycle	Mechanical Life 20000 cycles

Conductor Cross Section Flexible

0.75 ... 16 mm²

Conductor Cross Section Solid Core

0.75 ... 25 mm²

Housing Material

Insulation Group II, RAL 7035

Depth 69 mm	Height 85 mm	Weight 105 g
Width 17.5 mm	Width in No. of Modular Spacing 1	Pole Width 17.5 mm

Rated Surrounding Temperature Without Derating 30 °C	Pollution Degree 2	Storage Temperature -40 to 70 degC
Operating Temperature -25 to 55 degC	IP Rating IP20 Enclosure with Cover IP40

Standards and Approvals

IEC 60898

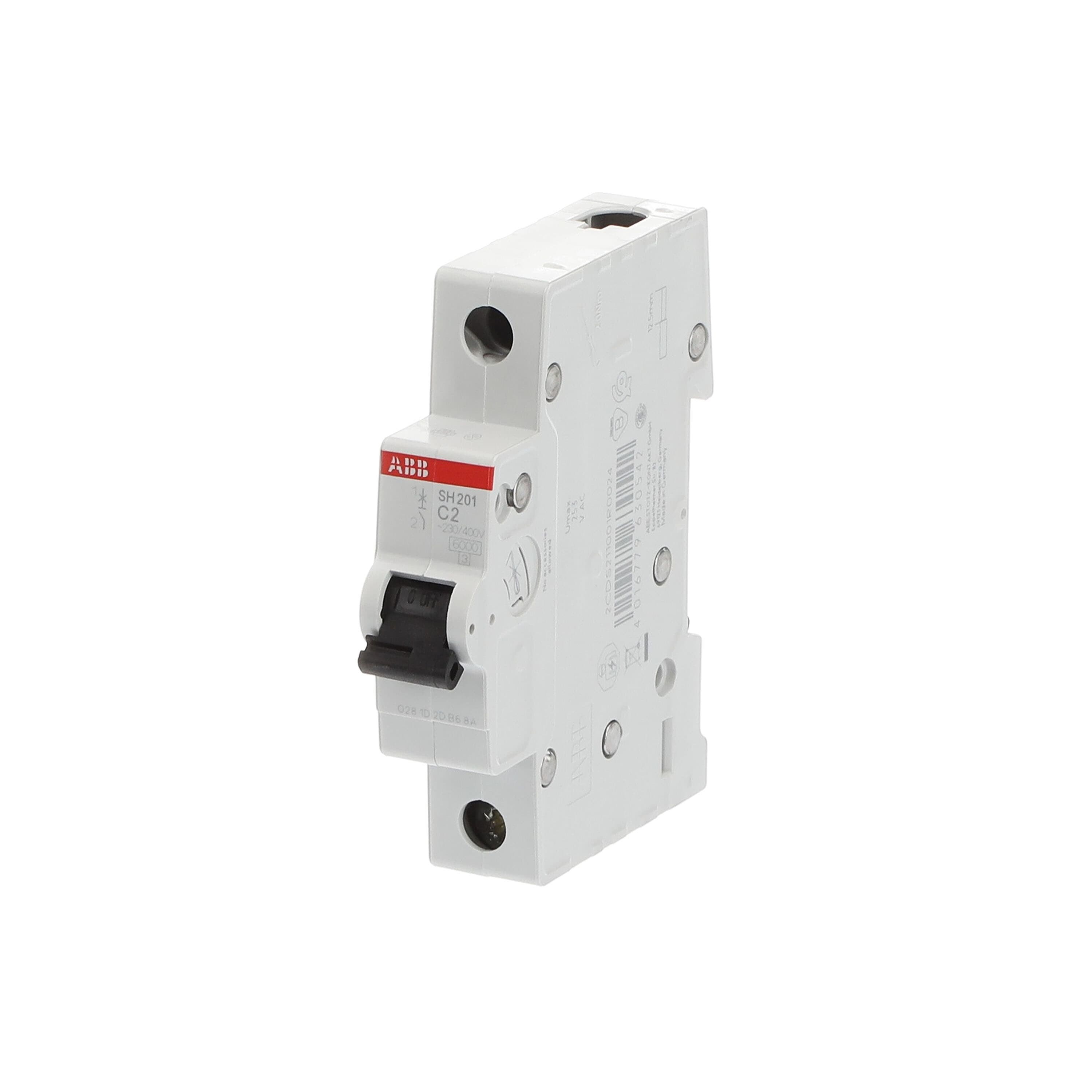

ABB SH201C2 Miniature Circuit Breaker 6 kA 1-P 2A 230V C-Curve
