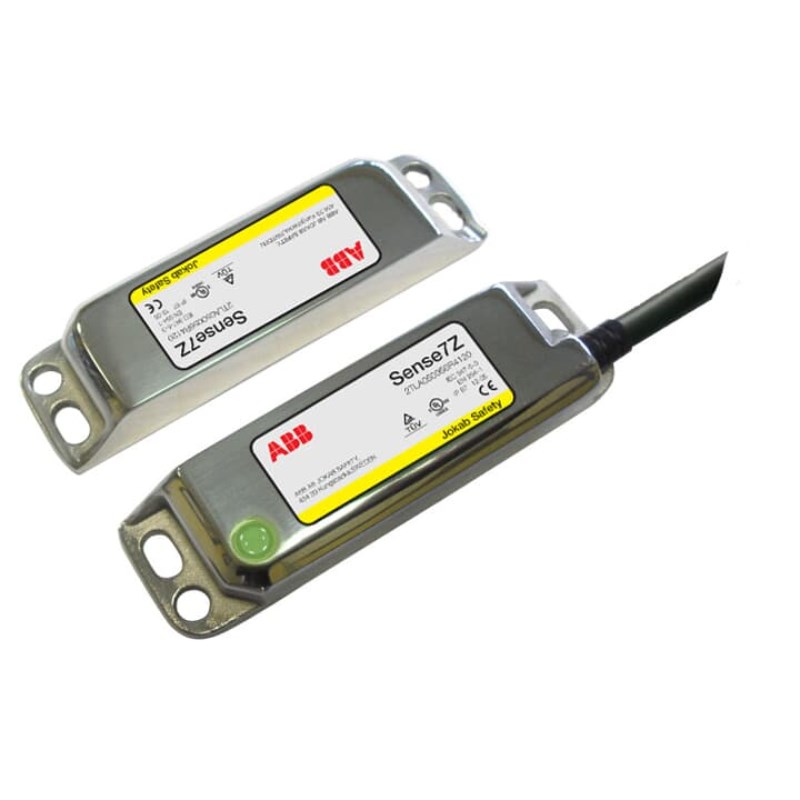

ABB SENSE7Z.5 Magnetic Safety Sensor With Actuator 2NC+1NO 5m Cable

Product Code: SENSE7Z.5

  • 24 VDC, 1 mA rated safety switch
  • Durable 316 stainless steel housing
  • IP67, IP69K protection for harsh environments
  • Operates in -25 to 70°C temperature range
  • cCSAus approved for compliance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
ABB
Series
Sense7Z

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Contact Configuration
2 NC + 1 NO
Rated Current (In)
0.2 A
Rated Voltage (Ur)
24 V DC

Mechanical

Actuator Type
Coded magnetic actuator
Housing Colour
Stainless steel
Housing Material
Stainless steel 316
Material
Stainless steel 316
Actuator Included
Yes

Dimensions & Physical Data

Depth
14 mm
Height
88 mm
Weight
0.438 kg
Width
50 mm

Environmental

IP Rating
IP67, IP69K
Ambient Temperature
-25 °C to +105 °C

Documents

IPD Product Catalogue V17
