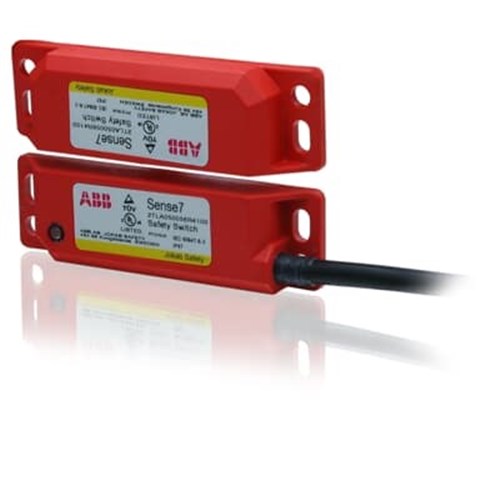

ABB SENSE7.5 Safety Magnetic Switch 2NC+1NO 5m Cable

Product Code: SENSE7.5

  • Operates at 24 VDC, 1 mA
  • Features 2NC+1NO contacts
  • Durable polyester housing
  • IP67 and IP69K protection
  • Withstands -25 to 50°C temps
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Magnetic Switch
Brand
ABB
Series
Sense7

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Contact Configuration
2 NC + 1 NO
Rated Current (In)
0.2 A
Rated Voltage (Ur)
24 V DC

Mechanical

Actuator Type
Coded magnetic actuator
Housing Colour
Red
Housing Material
UL-approved polyester
Material
UL-approved polyester
Actuator Included
Yes

Dimensions & Physical Data

Depth
13 mm
Height
88 mm
Weight
0.319 kg
Width
50 mm

Environmental

IP Rating
IP67, IP69K
Ambient Temperature
-25 °C to +80 °C

Documents

IPD Product Catalogue V17
