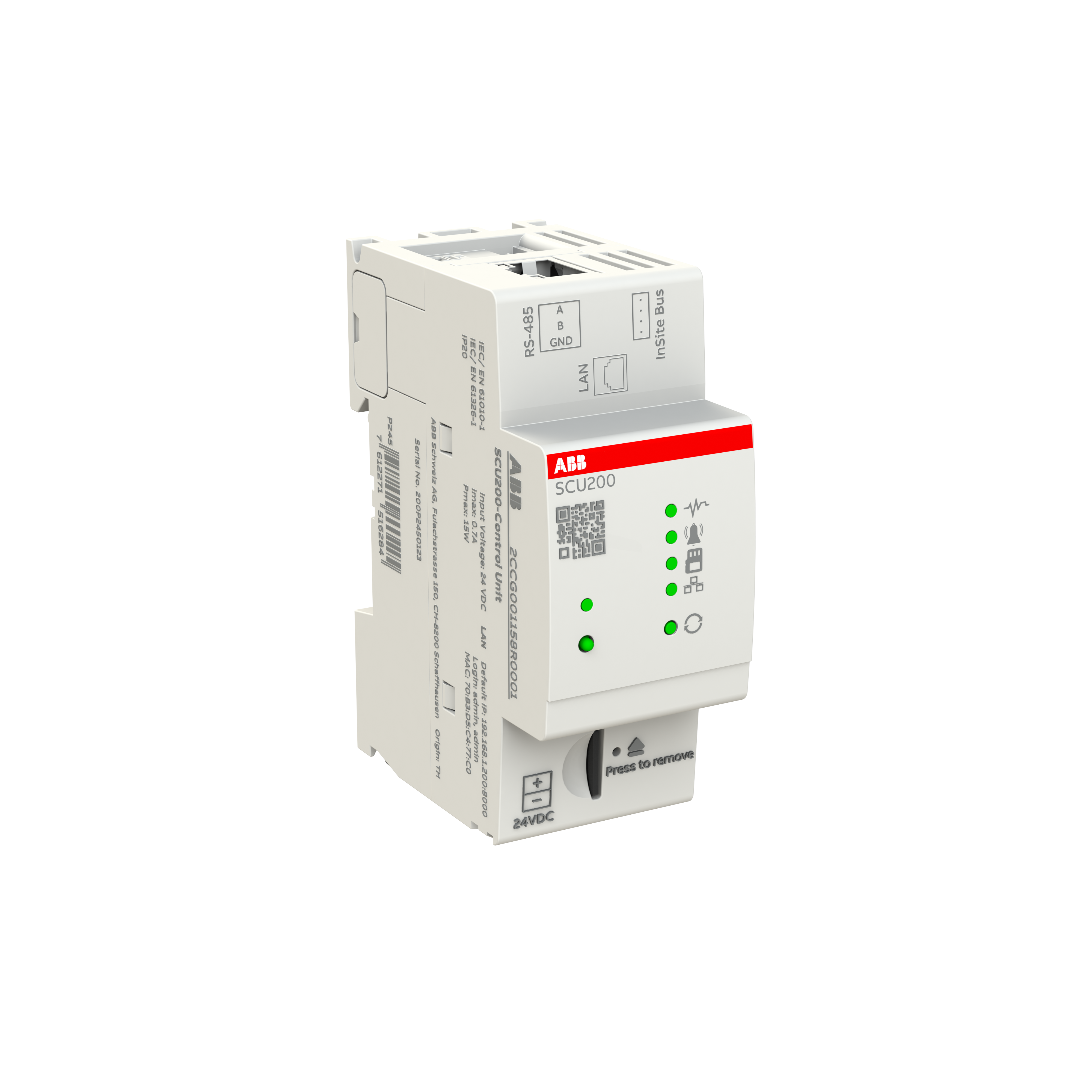

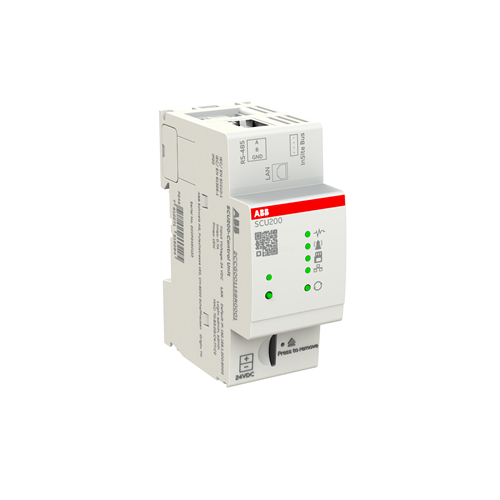

ABB SCU200 MAIN CONTROL UNIT INSITE PRO M COMPACT

Product Code: SCU200

  • Operates at 24 VDC for efficient power use
  • Easy DIN rail mounting system
  • Reliable in -25 to 55°C temperature range
  • IP20 protection against solid objects
  • Complies with CE, REACH, RoHS, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Main Control Unit
Brand
ABB
Application
Power quality

Electrical

Product Compatibility
InSite Pro Energy Management Eco-System of accessories and expansion modules
Rated Operational Current AC-15 (Ie)
0.7A
Power Consumption
15W
Supply Voltage
24V

Mechanical

Mounting
DIN-Rail

Dimensions & Physical Data

Depth
64.9mm
Height
87mm
Weight
0.105kg
Width
35.8mm

Environmental

IP Rating
IP20
Ambient Temperature
Operation -25 ... 55°C

Documents

IPD Product Catalogue V17
