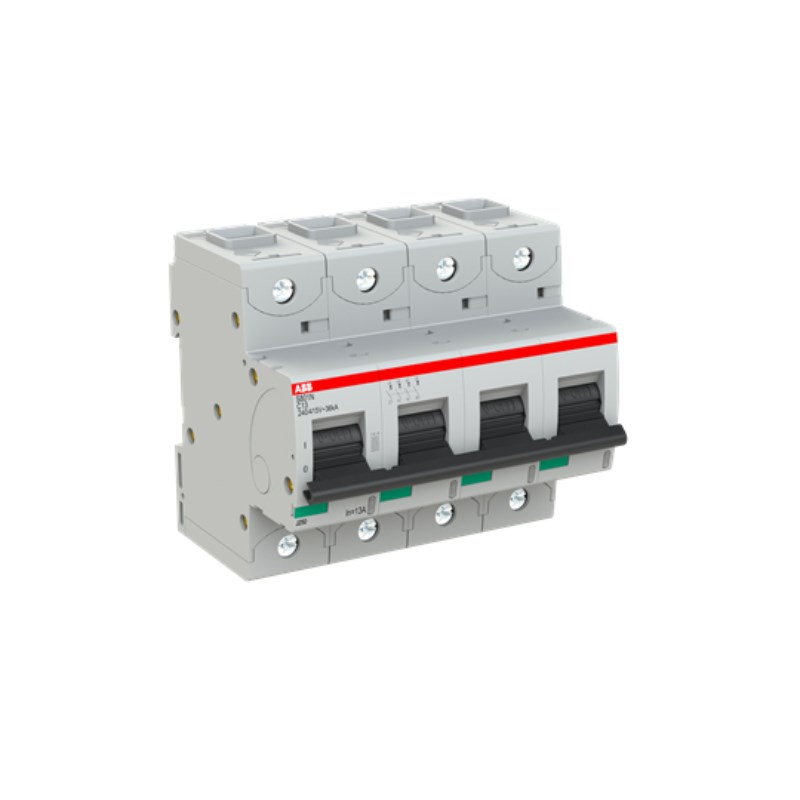

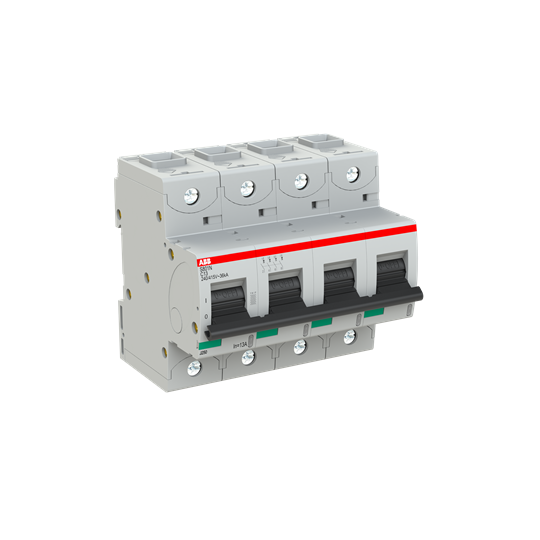

ABB S804NC13 High Performance Miniature Circuit Breaker 36 kA at 400VAC 4-P 13A 400/690VAC C-Curve

Product Code: S804NC13

  • 13 A MCB for commercial/industrial use
  • Rated voltage up to 690 VAC
  • High breaking capacity of 36kA at 400 VAC
  • Compact size: 106 mm width, DIN rail mount
  • Complies with IEC/EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Circuit Breaker (MCB)
Brand
ABB
Series
S800N
Application
Commercial and industrial

Electrical

No. of Poles (Total)
4
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
690V
Power Loss
8W
Rated Current (In)
13A
Rated Frequency
50/60Hz
Trip Curve
C
Terminal Type
Screw Terminals (Failsafe cage or ringlug terminal)
Electrical Life
10000 cycles
Mechanical Life
10000 cycles

Mechanical

Conductor Cross Section Flexible
0mm² to 50mm²
Conductor Cross Section Solid Core
0mm² to 70mm²
Housing Material
Insulation group I, RAL 7035

Dimensions & Physical Data

Depth
82.5mm
Height
95mm
Weight
0.98kg
Width
106mm
Width in No. of Modular Spacing
6
Pole Width
27mm

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-2, IEC/EN 60898-1
