Specifications

Product Type Miniature Circuit Breaker (MCB)	Brand ABB	Series S800S
Application Commercial and industrial

No. of Poles (Total) 3	Rated Impulse Withstand Voltage (Uimp) 8 kV	Rated Insulation Voltage (Ui) 690 V
Power Loss 5.4 W	Rated Current (In) 6 A	Rated Frequency 50/60 Hz
Rated Voltage (Ur) 230/400 V AC	Trip Curve C	Terminal Type Screw Termianls (Failsafe cage or ringlug terminal)
Electrical Life 10000 cycles	Mechanical Life 10000 cycles

Conductor Cross Section Flexible

0 to 50 mm2

Conductor Cross Section Solid Core

0 to 70 mm2

Housing Material

Insulation group I, RAL 7035

Depth 82.5 mm	Height 95 mm	Weight 735 g
Width 81 mm	Width in No. of Modular Spacing 4.5	Pole Width 27 mm

Rated Surrounding Temperature Without Derating 30 degC	Pollution Degree 3	Storage Temperature -40 to 70 degC
Operating Temperature -40 to 70 degC	IP Rating IP20

Standards and Approvals

IEC/EN 60947-2, IEC/EN 60898-1, UL 1077

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 240/415 VAC

50 kA

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 400/690 VAC

6 kA

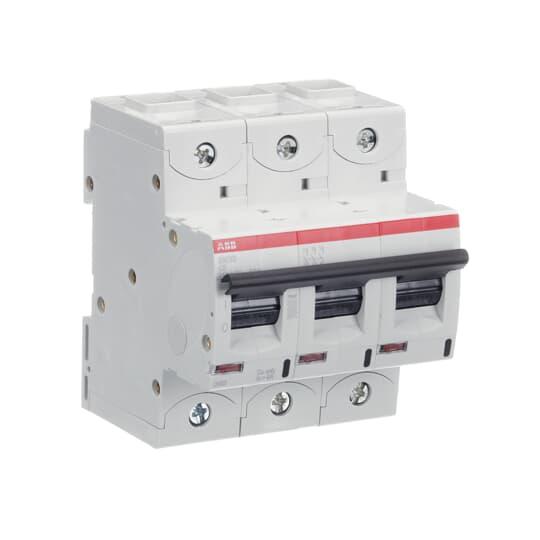

ABB S803SC6 High Performance Miniature Circuit Breaker 50 kA at 400VAC 3-P 6A 400/690VAC C-Curve
