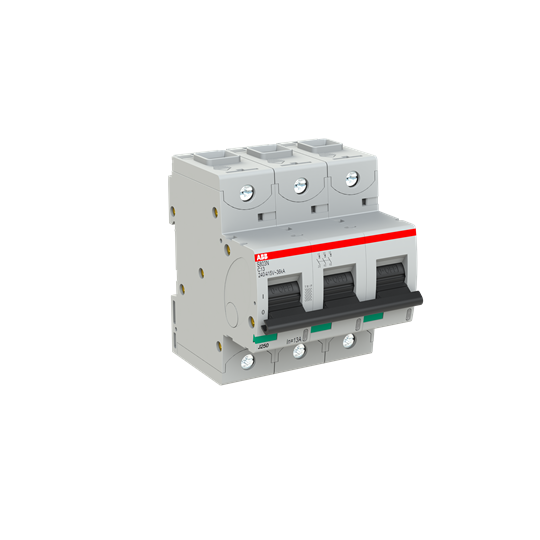

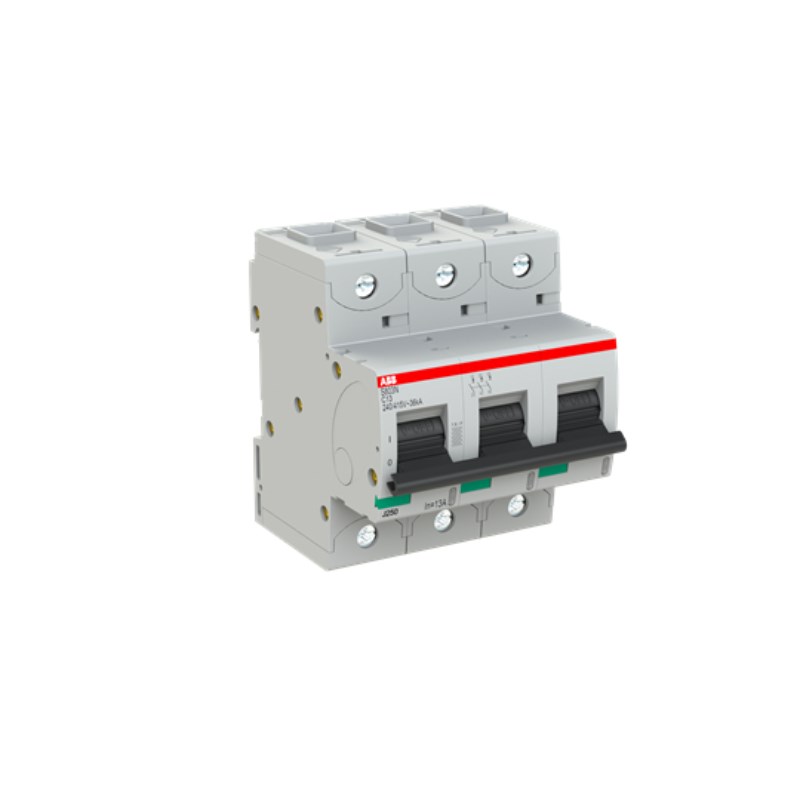

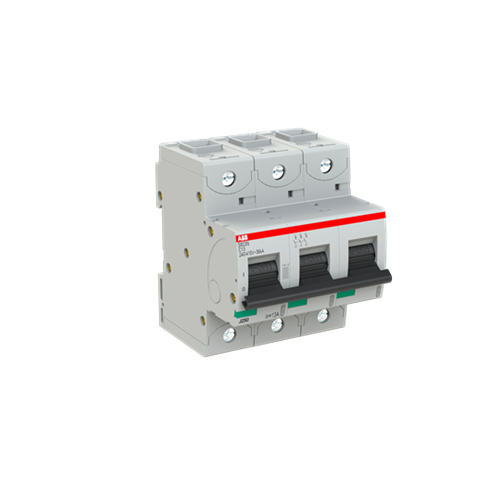

ABB S803NC13 High Performance Miniature Circuit Breaker 36 kA at 400VAC 3-P 13A 400/690VAC C-Curve

Product Code: S803NC13

  • Rated current of 13 A, ideal for various applications
  • High breaking capacity of 36kA at 400 VAC
  • Meets AS/NZS standards for safety and reliability
  • Compact design with dimensions: W81 x H95 x D82.5 mm
  • Suitable for commercial and industrial use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Circuit Breaker (MCB)
Brand
ABB
Series
S800N
Application
Commercial and industrial

Electrical

No. of Poles (Total)
3
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
690V
Power Loss
6W
Rated Current (In)
13A
Rated Frequency
50/60Hz
Trip Curve
C
Terminal Type
Screw Terminals (Failsafe cage or ringlug terminal)
Electrical Life
10000 cycles
Mechanical Life
10000 cycles

Mechanical

Conductor Cross Section Flexible
0mm² to 50mm²
Conductor Cross Section Solid Core
0mm² to 70mm²
Housing Material
Insulation group I, RAL 7035

Dimensions & Physical Data

Depth
82.5mm
Height
95mm
Weight
0.735kg
Width
81mm
Width in No. of Modular Spacing
4.5
Pole Width
27mm

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-2, IEC/EN 60898-1
