Specifications

Product Type Miniature Circuit Breaker (MCB)	Brand ABB	Series S800C
Application Commercial and industrial

No. of Poles (Total) 3	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 500V
Power Loss 6W	Rated Current (In) 13A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 230/400V AC	Trip Curve C	Terminal Type Screw Terminals (Failsafe cage or ringlug terminal)
Electrical Life 10000 cycles	Mechanical Life 10000 cycles

Conductor Cross Section Flexible

0mm² to 50mm²

Conductor Cross Section Solid Core

0mm² to 70mm²

Housing Material

Insulation group I, RAL 7035

Depth 82.5mm	Height 95mm	Weight 0.735kg
Width 81mm	Width in No. of Modular Spacing 4.5	Pole Width 27mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 60°C	IP Rating IP20

Standards and Approvals

IEC/EN 60947-2, IEC/EN 60898-1, UL 1077

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 240 VAC

25kA

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 415 VAC

25kA

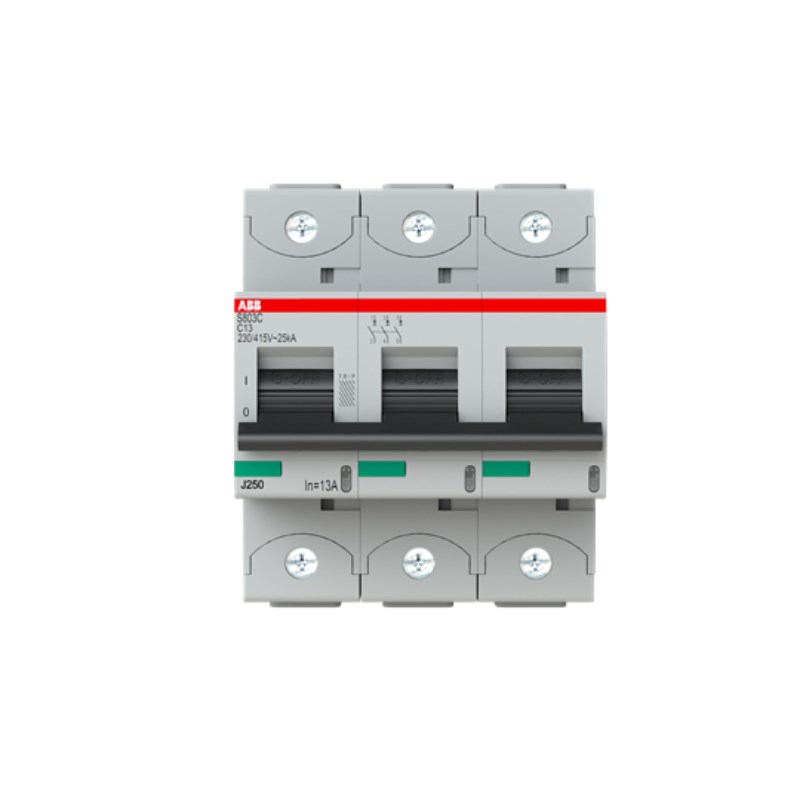

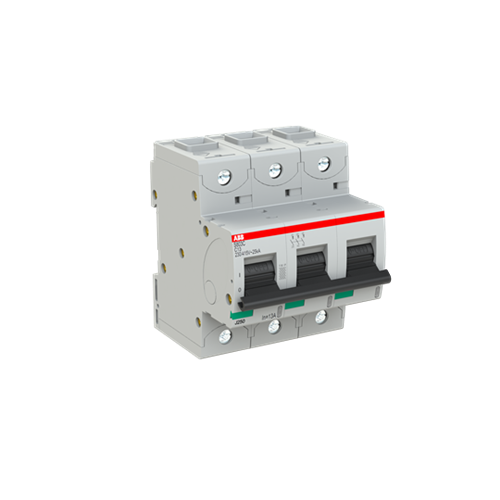

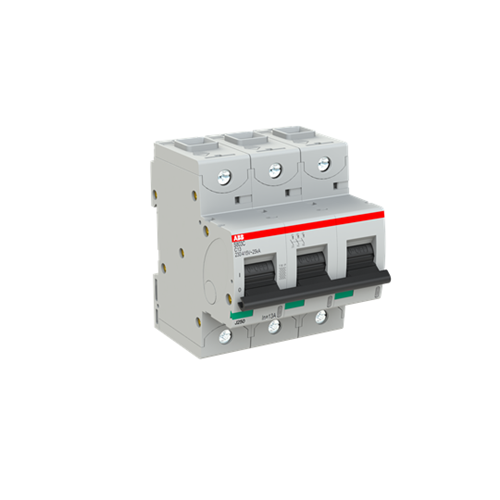

ABB S803CC13 High Performance Miniature Circuit Breaker 25 kA at 400VAC 3-P 13A 230/400VAC C-Curve
