Specifications

Product Type Miniature Circuit Breaker (MCB)	Brand ABB	Series S800P
Application Commercial and industrial

No. of Poles (Total) 2	Rated Impulse Withstand Voltage (Uimp) 6kV	Rated Insulation Voltage (Ui) 690V
Power Loss 18.8W	Rated Current (In) 125A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 400/690V AC	Trip Curve D	Terminal Type Screw Terminals (Failsafe cage or ringlug terminal)
Electrical Life 4000	Mechanical Life 8000

Conductor Cross Section Flexible

1mm² to 50mm²

Conductor Cross Section Solid Core

1mm² to 70mm²

Housing Material

Material group I, RAL 7035

Depth 82.5mm	Height 95mm	Weight 0.515kg
Width 63mm	Width in No. of Modular Spacing 3.5	Pole Width 27mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -40°C to 70°C	IP Rating IP20

Standards and Approvals

IEC/EN 60947-2, UL 1077

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 240 VAC

50kA

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 415 VAC

50kA

Rated Ultimate Short- Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 400 VAC

(415V AC) 50kA

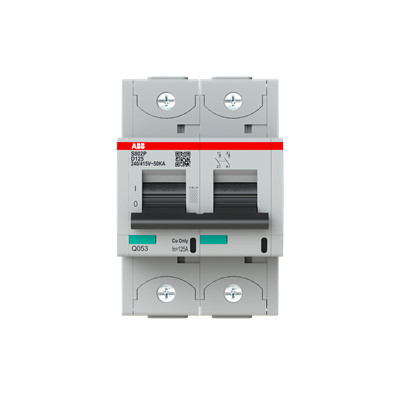

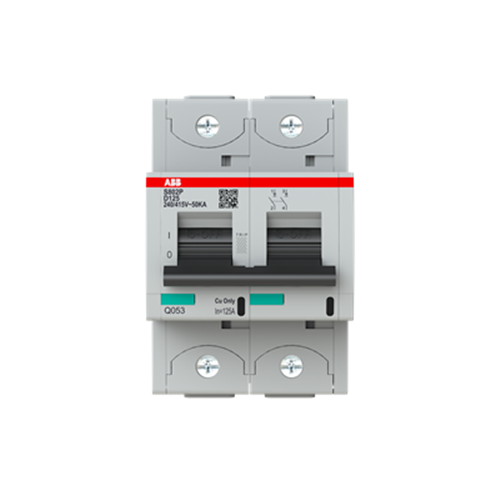

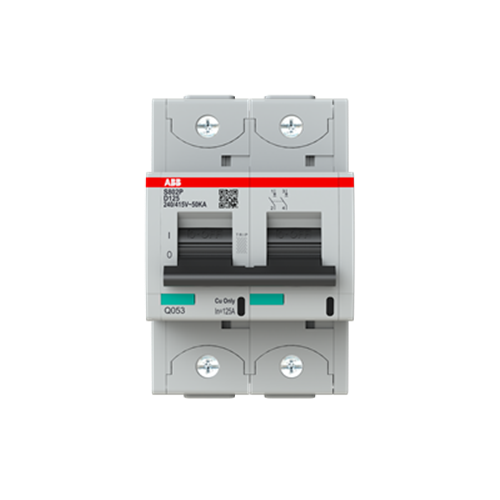

ABB S802PD125 High Performance Miniature Circuit Breaker 50 kA 2-P 125A 400/690VAC D-Curve
