Specifications

Product Type Miniature Circuit Breaker (MCB)	Brand ABB	Series S800P
Application Commercial and industrial

No. of Poles (Total) 2	Rated Impulse Withstand Voltage (Uimp) 6kV	Rated Insulation Voltage (Ui) 690V
Power Loss 12.8W	Rated Current (In) 80A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 400/690V AC	Trip Curve C	Terminal Type Screw Terminals (Failsafe cage or ringlug terminal)
Electrical Life 6000	Mechanical Life 10000

Conductor Cross Section Flexible

1mm² to 50mm²

Conductor Cross Section Solid Core

1mm² to 70mm²

Housing Material

Material group I, RAL 7035

Depth 82.5mm	Height 95mm	Weight 0.49kg
Width 54mm	Width in No. of Modular Spacing 3	Pole Width 27mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -40°C to 70°C	IP Rating IP20

Standards and Approvals

IEC/EN 60947-2, UL 1077

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 240 VAC

50kA

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 415 VAC

50kA

Rated Ultimate Short- Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 400 VAC

(415V AC) 50kA

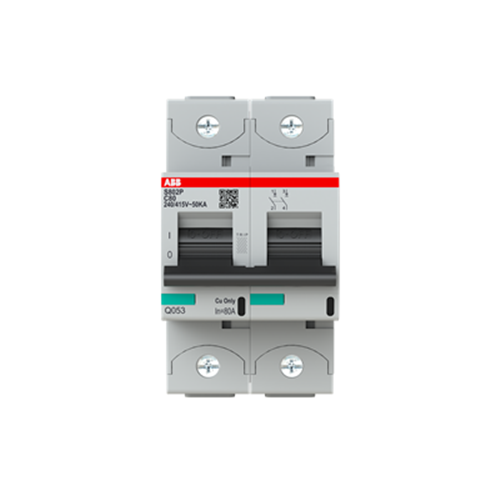

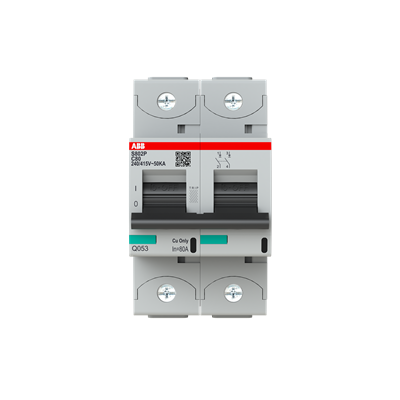

ABB S802PC80 High Performance Miniature Circuit Breaker 50 kA 2-P 80A 400/690VAC C-Curve
