Specifications

Product Type Miniature Circuit Breaker (MCB)	Brand ABB	Series S800N
Application Commercial and industrial

No. of Poles (Total) 1	Rated Impulse Withstand Voltage (Uimp) 8kV	Rated Insulation Voltage (Ui) 690V
Power Loss 6.4W	Rated Current (In) 63A	Rated Frequency 50/60Hz
Rated Voltage (Ur) acc. to IEC 60898-1 230 V AC	Trip Curve C	Terminal Type Screw Terminals (Failsafe cage or ringlug terminal)
Electrical Life 6000 cycles	Mechanical Life 10000 cycles

Conductor Cross Section Flexible

0mm² to 50mm²

Conductor Cross Section Solid Core

0mm² to 70mm²

Housing Material

Insulation group I, RAL 7035

Depth 82.5mm	Height 95mm	Weight 0.245kg
Width 27mm	Width in No. of Modular Spacing 1.5	Pole Width 27mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 60°C	IP Rating IP20

Standards and Approvals

IEC/EN 60947-2, IEC/EN 60898-1

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 230 VAC

(240V AC) 36kA

Rated Ultimate Short- Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 400 VAC

4.5kA

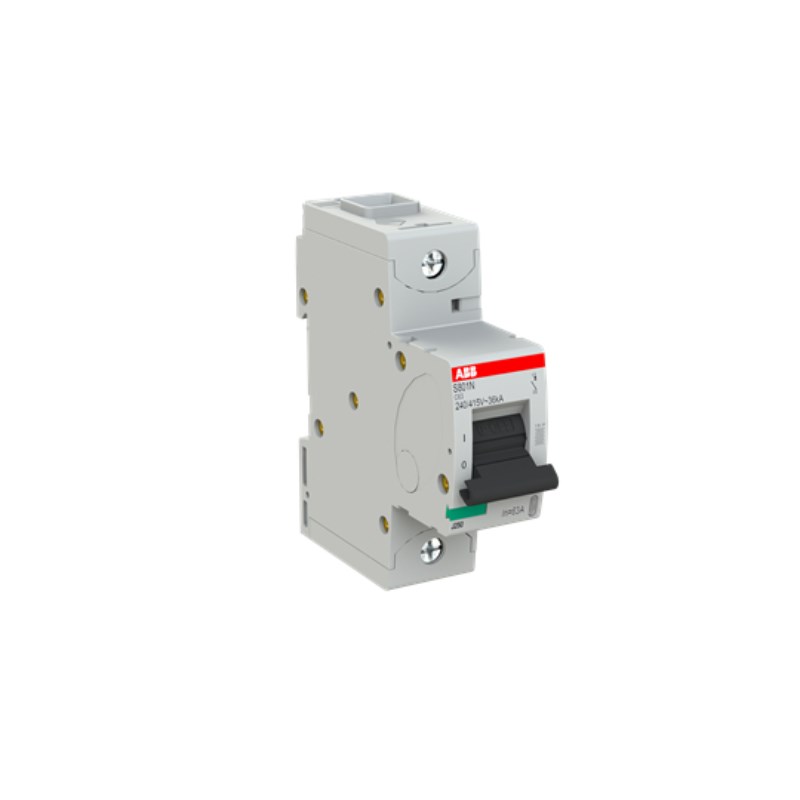

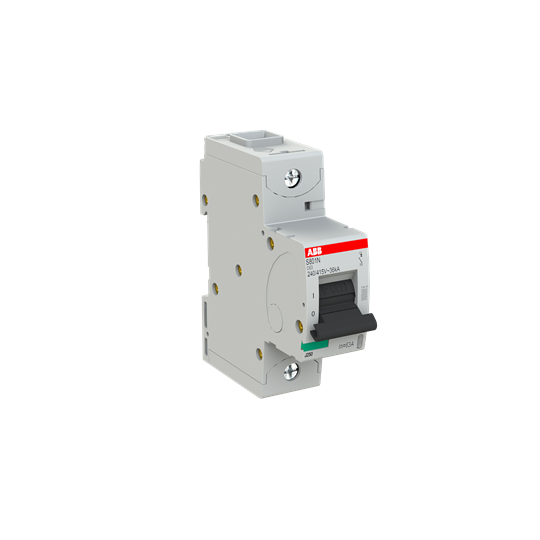

ABB S801NC63 High Performance Miniature Circuit Breaker 36 kA at 230VAC 1-P 63A 230/400VAC C-Curve
