Specifications

Product Type Miniature Circuit Breaker	Brand ABB	Series S300P
Application The MCBs S300 P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.

No. of Poles (Total) 2	Rated Impulse Withstand Voltage (Uimp) 6kV	Rated Insulation Voltage (Ui) 500V AC
Power Loss 2.8W	Rated Current (In) 16A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 240V AC	Trip Curve K	Terminal Type Screw Terminals (Failsafe Bi-directional Cylinder-lift Terminal)
Electrical Life 20000 AC cycle	Mechanical Life 20000 cycles

Conductor Cross Section Flexible

0.75mm² to 25mm²

Conductor Cross Section Solid Core

0.75mm² to 35mm²

Housing Material

Insulation group I, RAL 7035

Depth 69mm	Height 88mm	Weight 0.248kg
Width 35mm	Width in No. of Modular Spacing 2	Pole Width 17.5mm

Rated Surrounding Temperature Without Derating 40°C	Pollution Degree 3	Storage Temperature -50°C to 70°C
Operating Temperature -40°C to 70°C	IP Rating IP20 IP40 Enclosure with Cover IP40

Standards and Approvals

CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077

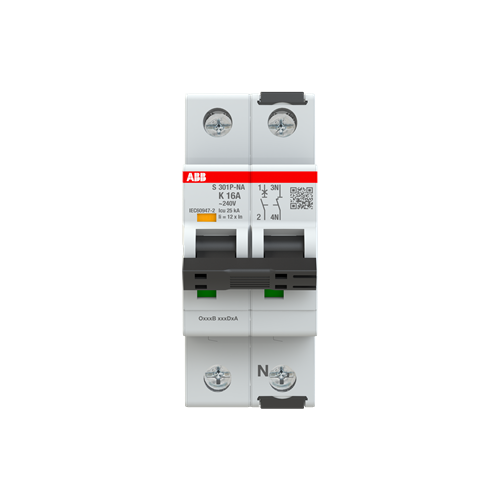

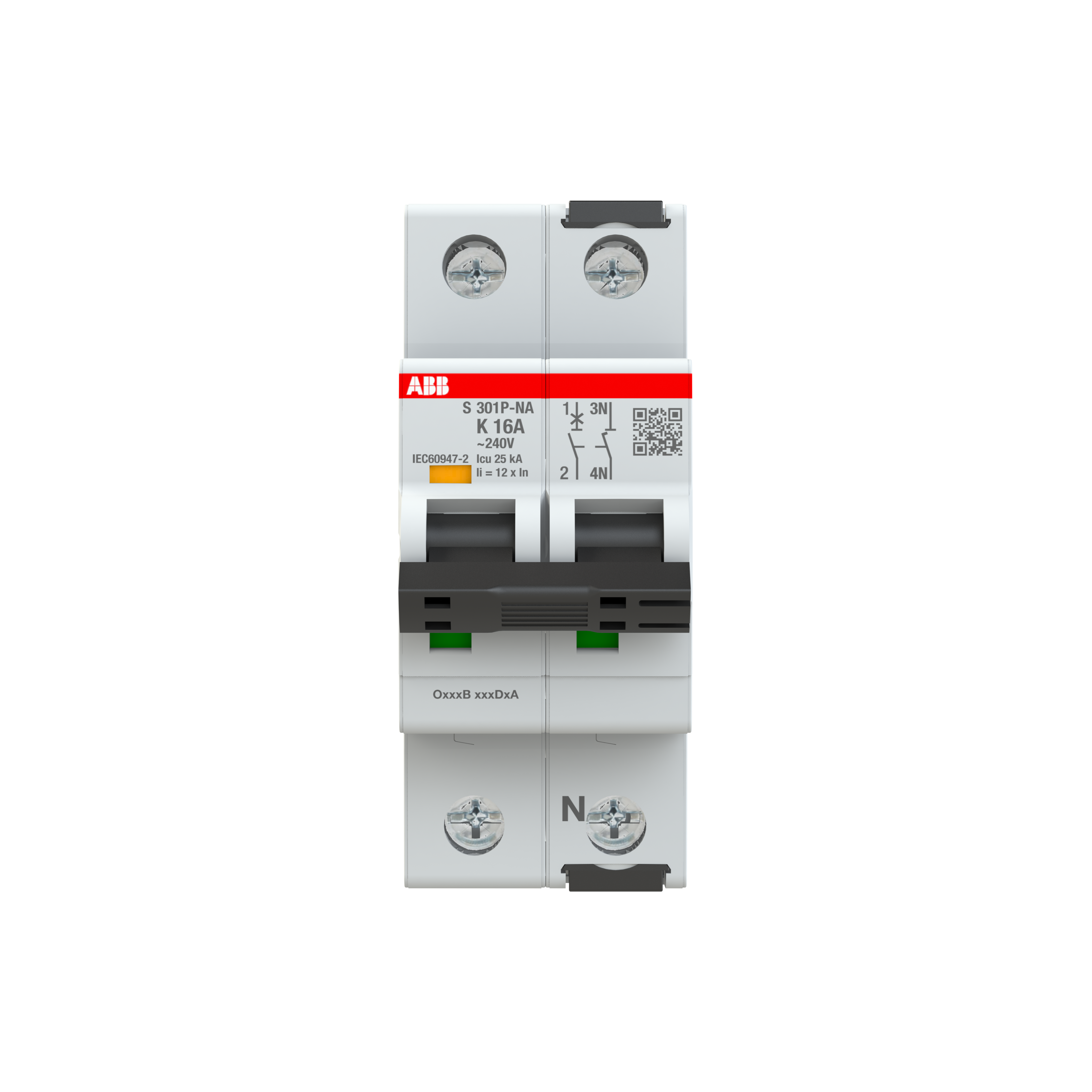

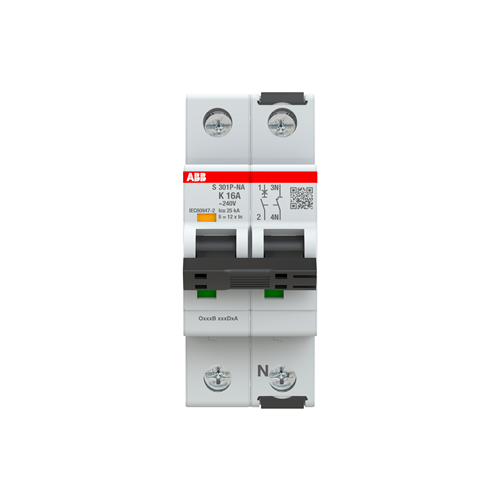

ABB S301PK16NA Miniature Circuit Breaker 25 kA 1-P 16A 240VAC K-Curve
