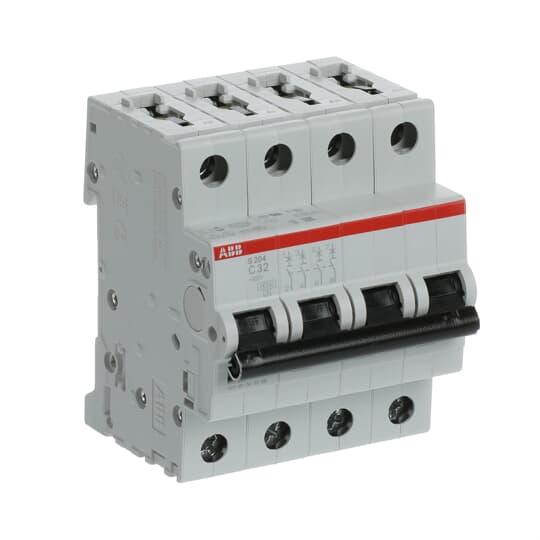

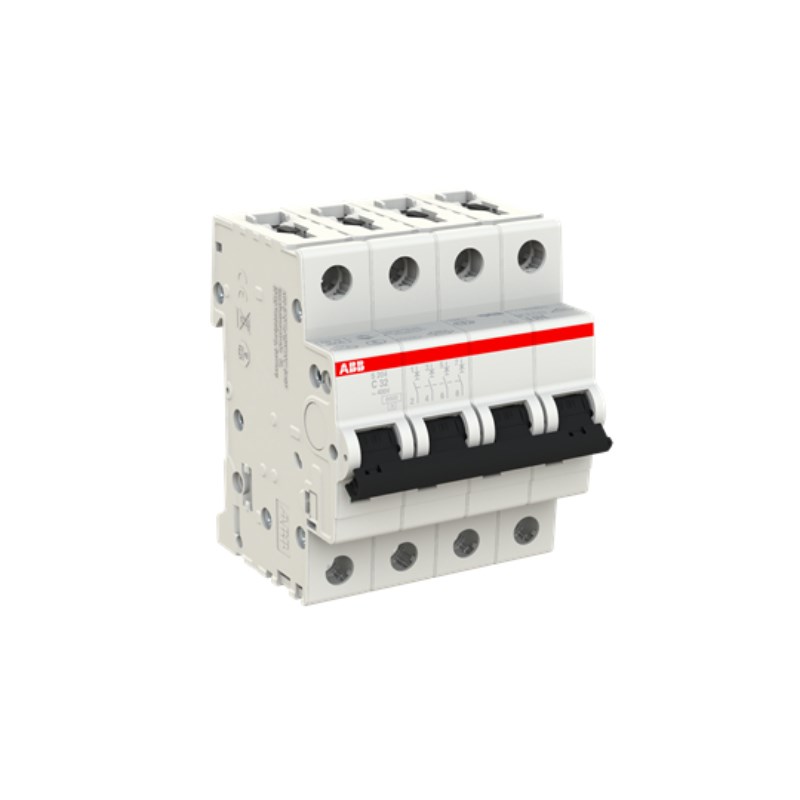

ABB S204C32 Miniature Circuit Breaker 6 kA at 400VAC 4-P 32A 400/415VAC C-Curve

Product Code: S204C32

  • 32 A MCB with 4 poles for industrial use
  • Rated voltage of 400/415 VAC, breaking capacity 6kA
  • Complies with AS/NZS and UL standards
  • Screw clamp terminals, DIN rail mountable
  • Durable up to 10,000 electrical cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Circuit Breaker
Brand
ABB
Series
S200
Application
Residential, commercial and industrial applications

Electrical

No. of Poles (Total)
4
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
440V
Power Loss
14.8W
Rated Current (In)
32A
Rated Frequency
50/60Hz
Trip Curve
C
Terminal Type
Screw Terminals
Electrical Life
10000 cycles
Mechanical Life
20000 cycles

Mechanical

Conductor Cross Section Flexible
0.75mm² to 25mm²
Conductor Cross Section Solid Core
0.75mm² to 35mm²
Housing Material
Insulation group II, RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
88mm
Weight
0.48kg
Width
70mm
Width in No. of Modular Spacing
4

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
