Specifications

Product Type Miniature Circuit Breaker	Brand ABB	Series S200
Application Residential, commercial and industrial applications

No. of Poles (Total) 3	Rated Impulse Withstand Voltage (Uimp) 4 kV	Rated Insulation Voltage (Ui) 440 V
Power Loss 6 W	Rated Current (In) 6 A	Rated Frequency 50/60 Hz
Trip Curve C	Terminal Type Screw Terminals	Electrical Life 20000 cycles
Mechanical Life 20000 cycles

Conductor Cross Section Flexible

0.75 to 25 mm2

Conductor Cross Section Solid Core

0.75 to 35 mm2

Housing Material

Insulation group II, RAL 7035

Depth 69 mm	Height 88 mm	Weight 336 g
Width 52.5 mm	Width in No. of Modular Spacing 3

Rated Surrounding Temperature Without Derating 30 degC	Pollution Degree 3	Storage Temperature -40 to 70 degC
Operating Temperature -25 to 55 degC

Standards and Approvals

IEC/EN 60898-1, IEC/EN 60947-2, UL 1077

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

6 kA

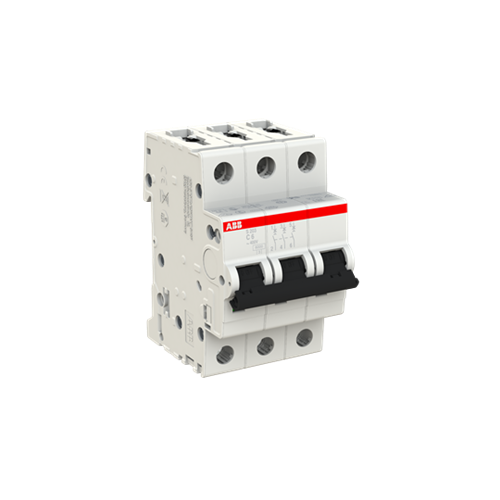

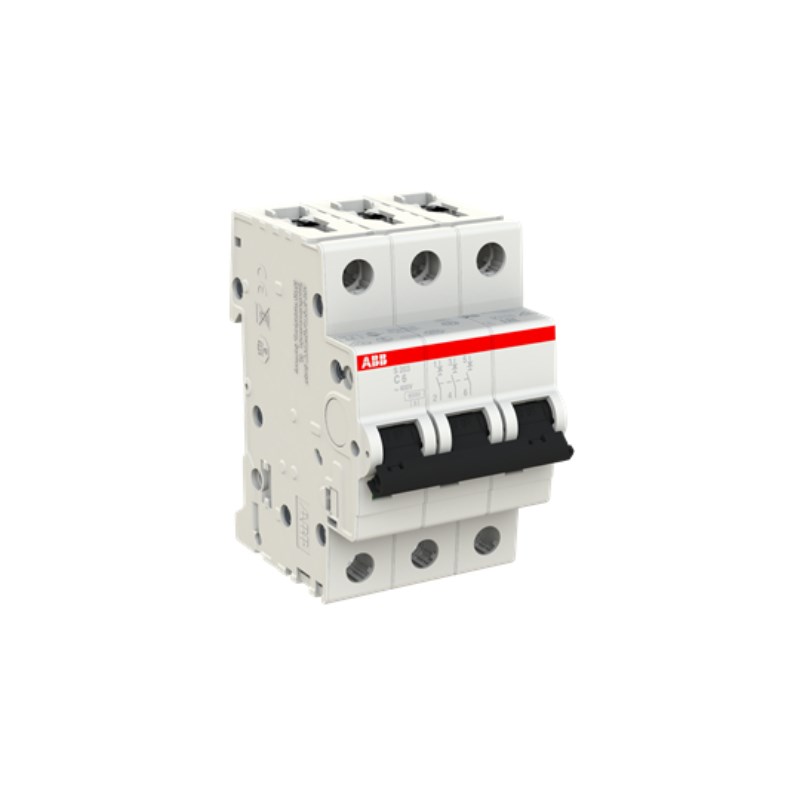

ABB S203C6 Miniature Circuit Breaker 6 kA at 400VAC 3-P 6A 400/415VAC C-Curve
